09956.A
System infrastructure / Enclosures and control units / Connector block boxes / Surface mounting

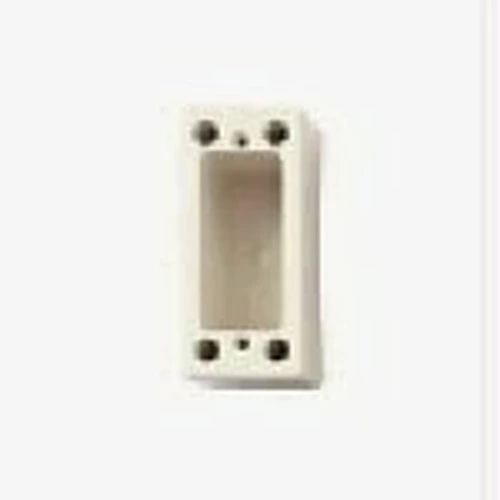

Surface-box+bottom 1M 40mm depth ivory
Mounting box with backplate, 40 mm depth, for 1 8000 standard module for panel mounting with relevants mounting frames and cover plates, ivory RAL 9001. Not suitable for 08064..., 08065…
Product Status
3 - Active
Class group
Electrical installation, isolation and connection material
Electrical installation, isolation and connection material
Class
Box/housing for surface mounting on the wall/ceiling
Box/housing for surface mounting on the wall/ceiling
Model
Mounting box
Mounting box
Equipped with
None
None
Max. conductor cross section
0,00 mm2
0,00 mm2
Shape
Rectangular
Rectangular
Mounting method
Wall-/ceiling mounting
Wall-/ceiling mounting
Length
79,50 mm
79,50 mm
Width
36,50 mm
36,50 mm
Depth
40,00 mm
40,00 mm
Diameter
0,00 mm
0,00 mm
Material
Plastic
Plastic
Surface protection
Untreated
Untreated
Colour
Other
Other
Transparent cover
No
No
Cover attachment
Screwed
Screwed
Sealable
No
No
Circuit integrity
None
None
Working temperature
0 - 60 °C
0 - 60 °C
Explosion-tested version
No
No
Minimum order quantity: 20 NR
Barcode
8007352043749
1 NR
3.6x8x4 [cm]
36 [g]
8007352002241
20 NR
24.4x13.9x11.9 [cm]
840.47 [g]
