2P NO 16A push button +000-key white - 14087.CU

Pdf
Vimar - 14087.CU - 2P NO 16A push button +000-key white
Vimar - 14087.CU - 2P NO 16A push button +000-key white
14087.CU

Plana / Devices / Devices - other functions

2P NO 16A push button +000-key white

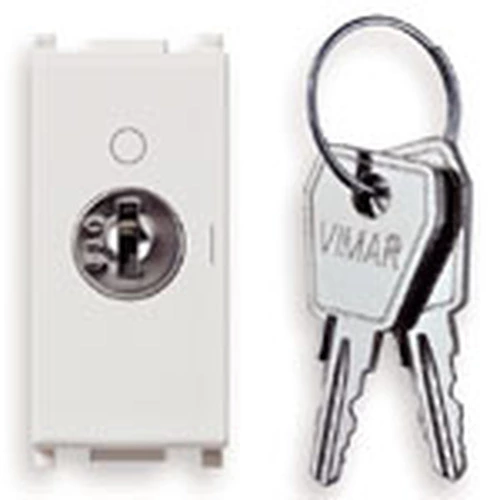

2P NO 16 A 250 V~ key-operated push button, with 000 unified key, white

Product Status
3 - Active

Class group
Domestic switching devices
Class
Push-switch button
Assembly arrangement
Modular device for domestic switching devices
Model
Other
Method of operation
Push button
Number of rockers
0
Number of modules (module system)
1
Number of poles
2
Nominal voltage
250 v
Rated current
16,00 A
With lighting
No
Feedback-signal contact
No
Mounting method
Flush mounted (plaster)
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9003
Transparent
No
Label space/information surface
Yes
Suitable for degree of protection (IP)
IP40
Width of device
22,30 mm
Height of device
49,00 mm
Depth of device
41,40 mm

00. CE Marking - EU

01. IMQ - Italy

10. EAC Eurasian Customs Union

14. TSE - Turkey

20. IRAM - Argentina

28. NSW / RCM - Australia

29. QCERT - Colombia

37. Marking - Morocco

92. RoHS UAE

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352108745
1 NR
5.1x2.8x5.3 [cm]
51.4 [g]
Barcode Qty 20 NR
8007352108752
20 NR
27x11.6x6 [cm]
1,103.73 [g]
Barcode Qty 120 NR
8007352657502
120 NR
37.5x30x13.5 [cm]
6,960 [g]
