MASTER dimmer 120-230V white - 14148

Pdf
Vimar - 14148 - MASTER dimmer 120-230V white
Vimar - 14148 - MASTER dimmer 120-230V white

14148
Wiring devices / Traditional wiring devices / PLANA / Devices

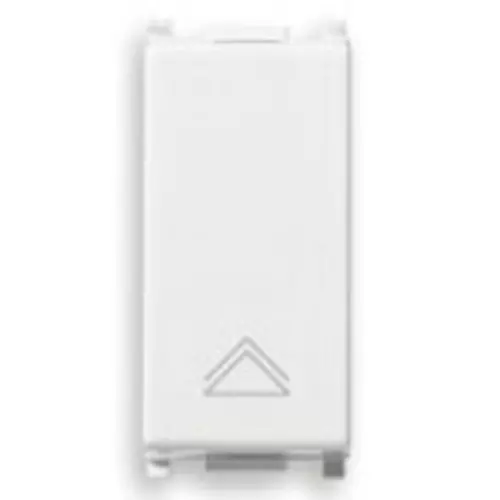

MASTER dimmer 120-230V white
Dimmer, 120-230 V~ 50-60 Hz, for: 40-500/40-800 W incandescent lamp, 40-300/40-500 VA ferromagnetic transformers, control and regulation with built-in push button or from peripheral NO push buttons, MASTER function, TRIAC technology, visible in darkness, white

Product Status
2 - Will be discontinued

Sheets, Manuals, Documentation

Drawings

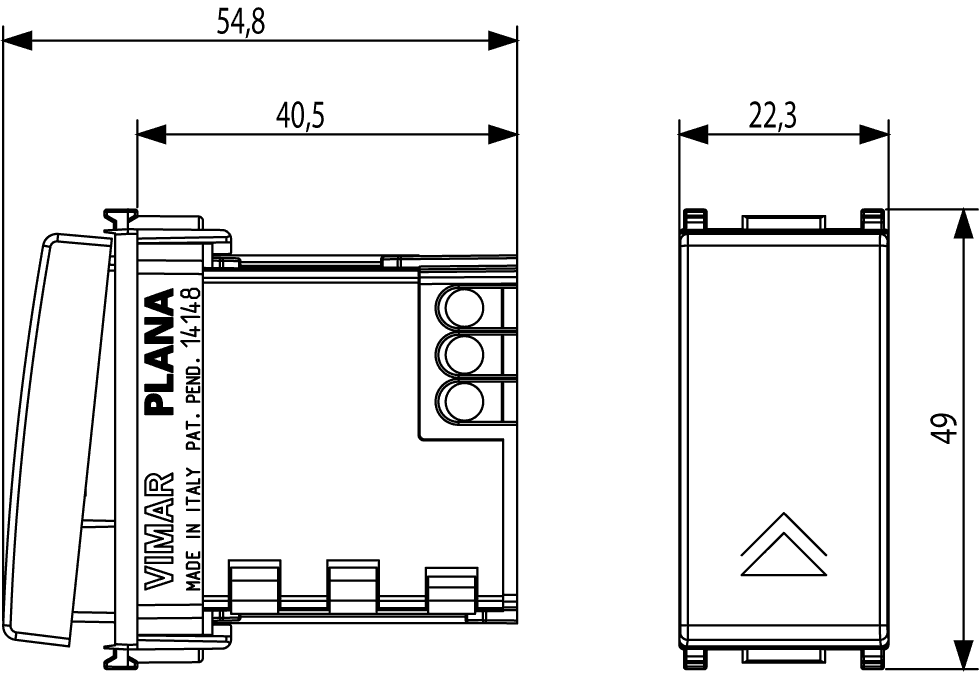

view encumbered art. 14148
PNG DXF

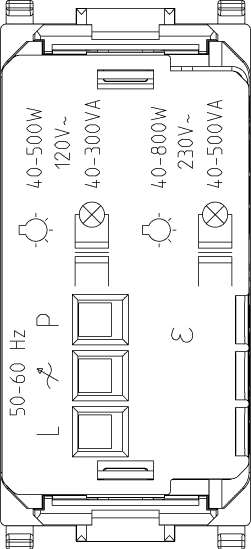

rear view art. 14148
PNG DXF

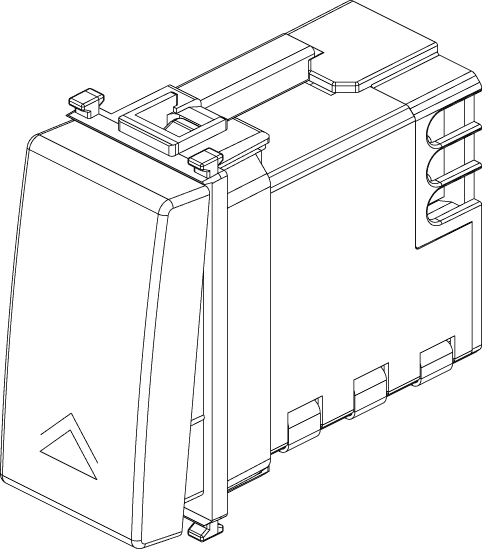

3D view art. 14148
PNG DXF
Class group
Domestic switching devices
Class
Dimmer
Method of operation
Push button
Type of load
Inductive load
Applicable with button
Yes
Applicable with movement sensor
No
Applicable with presence indicator
No
Applicable with time switch/timer
No
Applicable with transmission button
No
Applicable with infrared button
No
Mounting method
Flush-mounted
Type of fastening
Snapper mounting
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9003
Transparent
No
Suitable for degree of protection (IP)
IP40
Nominal voltage
120,00 - 230,00 V
Frequency
50,00 - 60,00 HZ
Control voltage
120,00 - 230,00 V
Device width
22,30 mm
Device height
49,00 mm
Device depth
54,80 mm

00. CE Marking - EU

43. UKCA mark - Great Britain

99. WEEE Directive

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352326545
1 NR
5.1x4.3x5.3 [cm]
53.87 [g]
Barcode Qty 10 NR
8007352326552
10 NR
26.9x11.6x4.9 [cm]
603 [g]
