SLAVE dimmer 230V 500W/VA 2M Silver - 14166.SL

Pdf

14166.SL
Wiring devices / Traditional wiring devices / PLANA / Devices

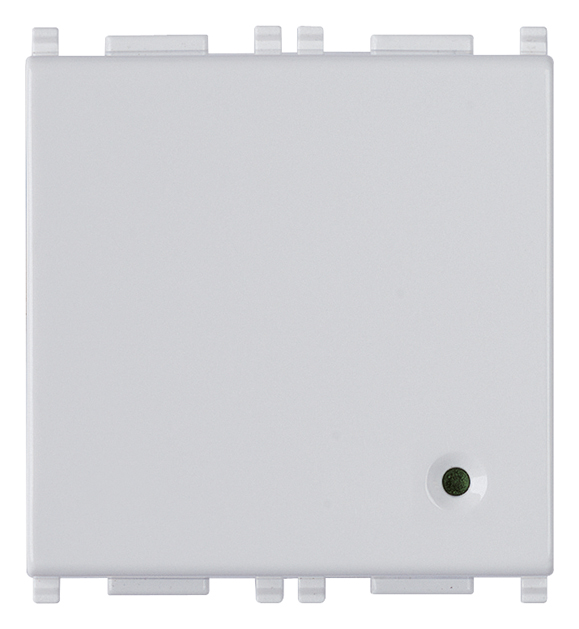

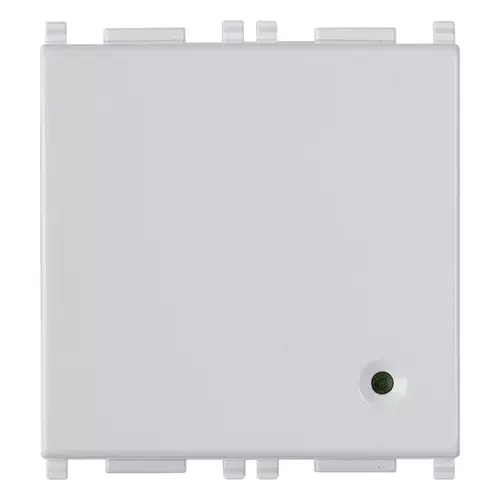

SLAVE dimmer 230V 500W/VA 2M Silver
SLAVE dimmer, supply voltage 230 V~ for: 40-500 W to 50 Hz or 40-400 W to 60 Hz incandescent lamps, 40-500 VA to 50 Hz or 40-400 VA to 60 Hz ferromagnetic transformers, control and regulation via 14166 and 20166, MOSFET+TRIAC technology, fuse protection, Silver - 2 modules

Product Status
2 - Will be discontinued

Sheets, Manuals, Documentation

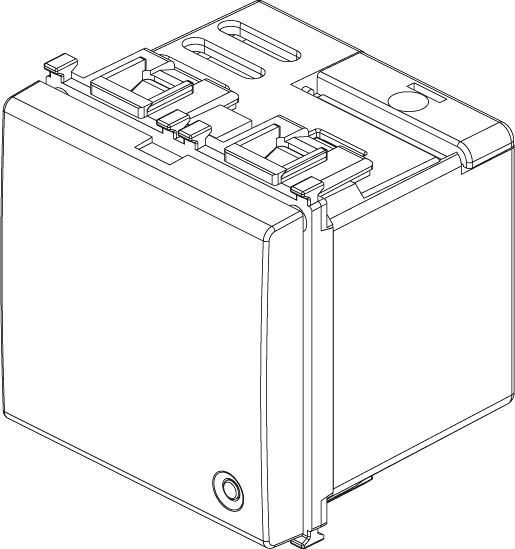

Drawings

Class group
Domestic switching devices
Class
Dimmer
Method of operation
Other
Type of load
Inductive load
Applicable with button
No
Applicable with movement sensor
No
Applicable with presence indicator
No
Applicable with time switch/timer
No
Applicable with transmission button
No
Applicable with infrared button
No
Mounting method
Flush-mounted
Type of fastening
Snapper mounting
Material
Plastic
Material quality
Thermoplastic
Surface protection
Lacquered
Surface finishing
Glossy
Colour
Silver
RAL-number (similar)
9006
Transparent
No
Suitable for degree of protection (IP)
IP40
Nominal voltage
230,00 - 230,01 V
Frequency
50,00 - 60,00 HZ
Control voltage
230,00 - 230,01 V
Device width
44,80 mm
Device height
49,00 mm
Device depth
43,00 mm

37. Marking - Morocco

Minimum order quantity: 5 NR

Barcode

Barcode Qty 1 NR
8007352387720
1 NR
6x5.4x5.3 [cm]
79.6 [g]
Barcode Qty 5 NR
8007352387737
5 NR
17.2x13.1x6 [cm]
456.1 [g]
