14181
Plana / Devices / Electronic devices

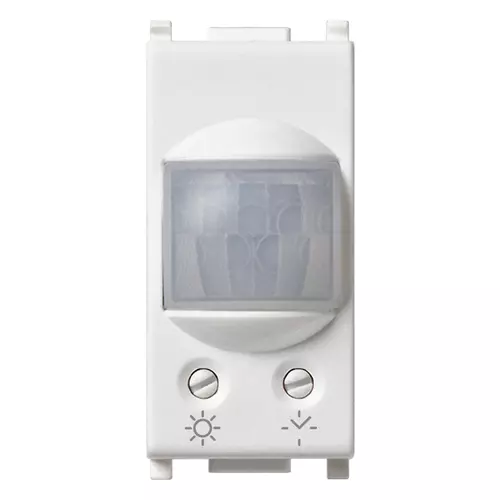

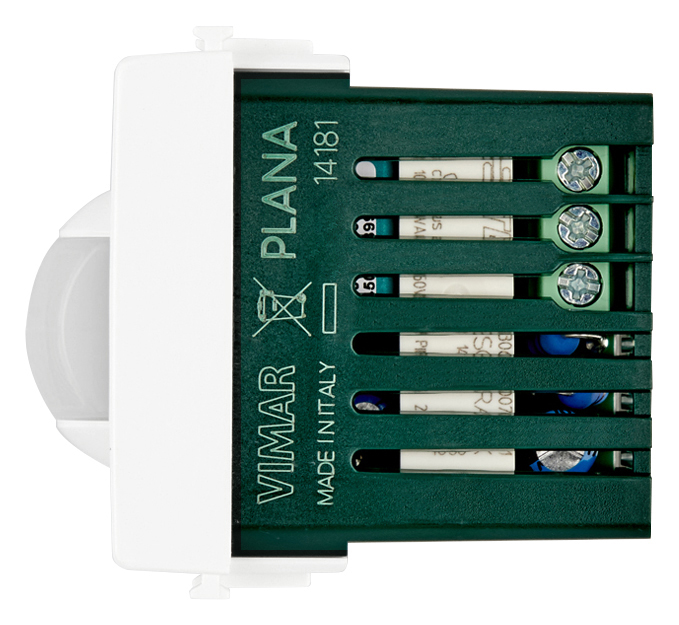

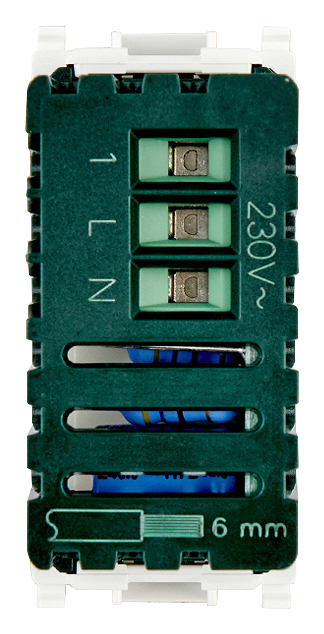

IR relay-switch 230V white
Automatic lighting switch with IR motion sensor, adjustable dusk/dawn sensor threshold and time-delay cycle, NO 6 A 230 V~ relay output, supply voltage 230 V~ 50-60 Hz, white
Product Status
3 - Active
Sheets, Manuals, Documentation

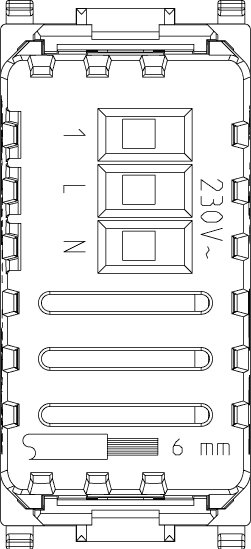

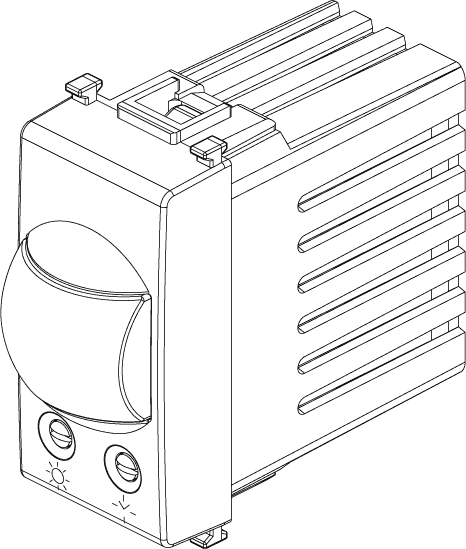

Drawings
Class group
Domestic switching devices
Class
Electronic insert for domestic switching
Model
Other
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module syst
1
Radio-controlled
No
Mounting method
Flush mounted (plaster)
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (akin)
9003
Transparent
No
Minimum order quantity: 5 NR
Barcode
8007352328280
1 NR
5.1x4.3x5.3 [cm]
53.07 [g]
8007352328297
5 NR
14.4x11.6x6 [cm]
315.13 [g]
8007352646247
60 NR
36.5x33x13.5 [cm]
4,578 [g]
8007352588035
2,160 NR
120x80x105 [cm]
149,812 [g]
| Question: |
Where should I install the 16633 Idea and 14181 Plana switches with infrared presence detectors for switching on lights? |
| Answer: |
Keep them away from heat sources and barriers like plants, furniture or columns; they should not be exposed to direct sunlight or have interior lights shining directly on them; they should be mounted 110 to 130cm above ground level if the installation is flush mounted. For higher installation, they must be installed on an adjustable supports. |
