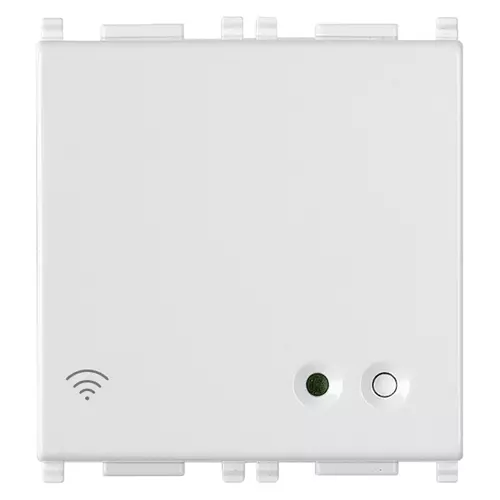

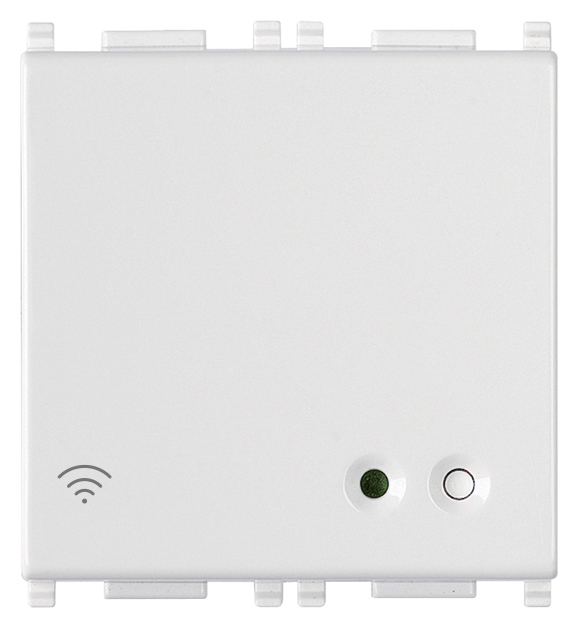

Vimar - 14195 - Wi-Fi access point 230V 2M white

14195

Net Safe / Devices / Radiofrequency

Wi-Fi access point 230V 2M white
Wi-Fi 72,2 Mb/s Access Point with 2 10-100 Mb/s LAN ports, input for remote Wi-Fi radio on/off push button, supply voltage 230 V~ 50/60 Hz, white - 2 modules

Product Status
3 - Active

You may also be interested in

14195.SL - Wi-Fi access point 230V 2M Silver

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Sheets, Manuals, Documentation

• FI - Foglio istruzioni ZIS_49401313B0 (438 kb)
• MI - Manuale installatore ZIS_20195-1919 (1803 kb)
• SI - Schemi Installativi ZIS_49400911A0 (921 kb)

Product Software

• FW_AccessPoint-WiFi_UGP-01.01_20190913.zip

Video

• Wi-Fi Access point

---

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Data and telecommunication

Class
WLAN access point

Max. data transmission rate
54

Frequency band
2.4 GHz

Radio protocol
IEEE 802.11 b/g/n

Ethernet
Yes

Number of ports 10/100 Mbps LA
2

Number of ports 10/100/1000 Mb
0

Firewall
No

Connection for external antenn
No

Bridge function
Yes

Repeater function
No

Power over Ethernet
No

Width
44,80 mm

Height
49 mm

Depth
51,70 mm

Degree of protection (IP)
IP40

Ceiling mounting
No

Built-in
No

Suitable for DIN rail (top hat
No

Pole fastening
No

Flush-mounted installation
Yes

Wall mounting
Yes

Socket outlet adapter
No

00. CE Marking - EU

10. EAC Eurasian Customs Union

37. Marking - Morocco

92. RoHS UAE

92. RoHS UAE

94. Radio Equipment EU DoC

99. WEEE Directive

Minimum order quantity: 1 NR

---

Barcode

8007352589544

1 NR

5.2x5.7x7.6 [cm]

84.3 [g]

8007352602403

5 NR

21.4x11.6x6 [cm]

481.2 [g]
