2P+E 16A Universal+USB-C outlet white - 14210.USB

Pdf
14210.USB

Plana / Devices / Italian standard socket outlets

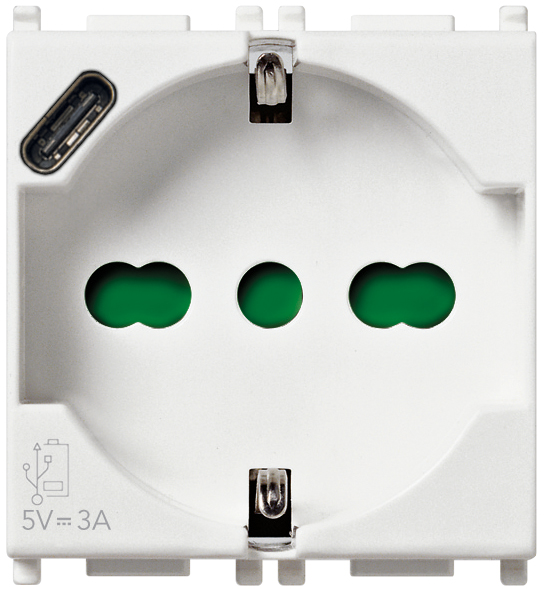

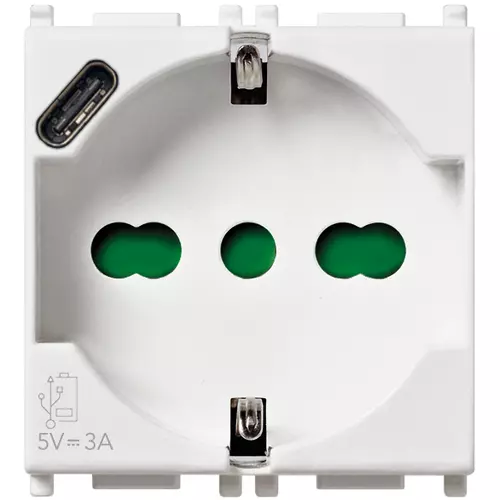

2P+E 16A Universal+USB-C outlet white

  • Device on 2 modules capable of simultaneously charging 2 devices, thanks to the universal socket outlet and the type C 3A USB socket outlet

Product Status
3 - Active

Sheets, Manuals, Documentation

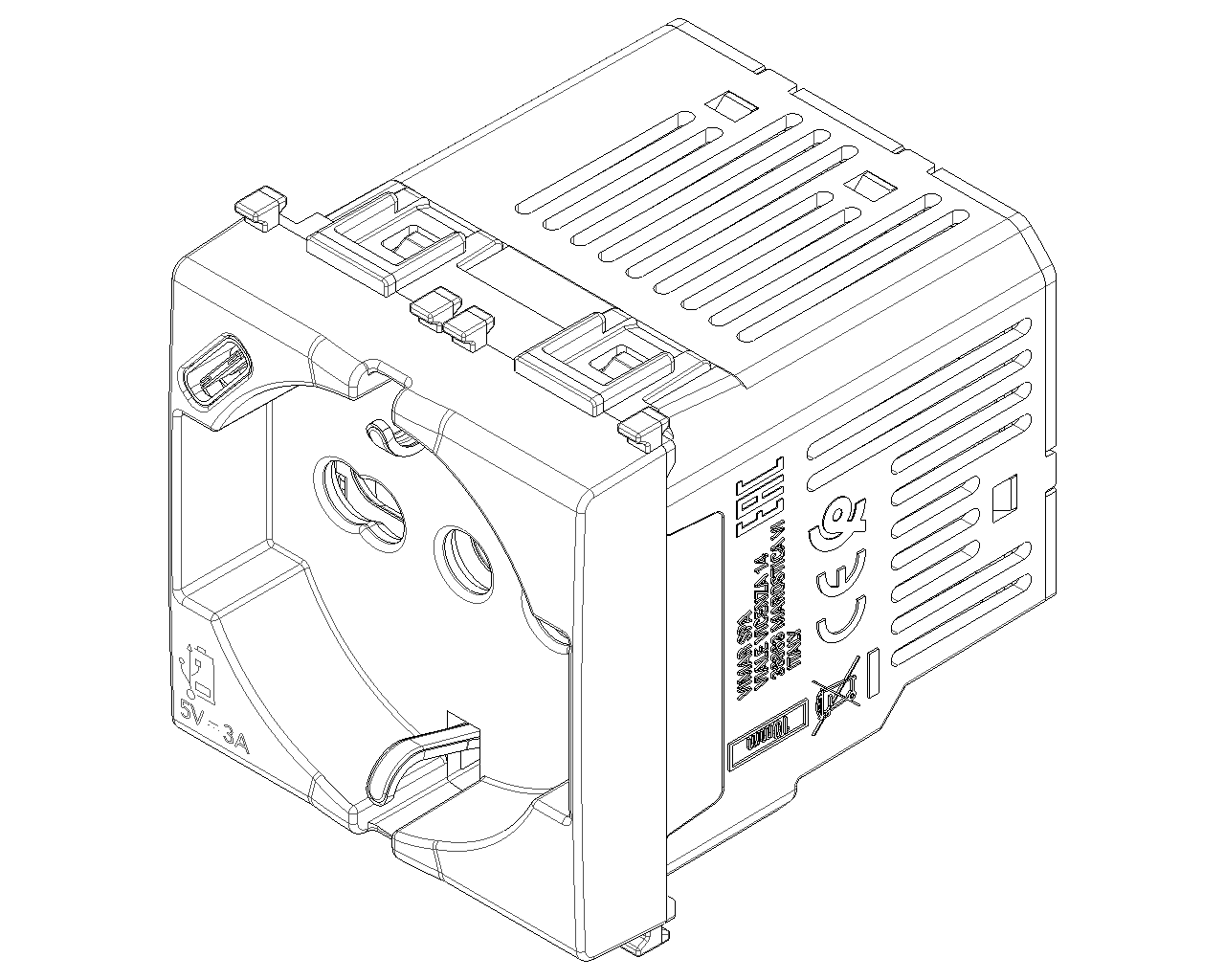

Drawings

Class group
Domestic switching devices
Class
Socket outlet
Model
Other
Protective contact
Yes
Protective earth pin round
No
Number of active pins (round)
0
Number of active pins (flat)
0
With signal lamp
No
With built-in USB power supply
Yes
Type of USB power supply
C
Number of units
1
Number of modules (module system)
2
Number of socket outlets switchable
0
Number of phases
2
Imprint/indication
Other
Connection type
Screwed terminal
With hinged lid
No
With enhanced contact protection
Yes
Label space/information surface
No
Colour
White
RAL-number (similar)
9003
Metallic colour
No
Transparent
No
Lockable
No
Eject-mechanism
No
Insulated mounting
Yes
With function lighting
No
With orientation lighting
No
Over voltage protection
No
Fault current protection
No
With miniature fuse
No
Special power supply
No special power supply
Mounting method
Flush mounted (plaster)
Type of fastening
Snap mounting (engagement)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Anti-bacterial treatment
No
With on/off switch
No
With loop through function
Yes
Rotated central insert
No
Nominal current
16 A
Nominal voltage
250 v
Frequency
50,00 - 60,00 HZ
Suitable for degree of protection (IP)
IP20

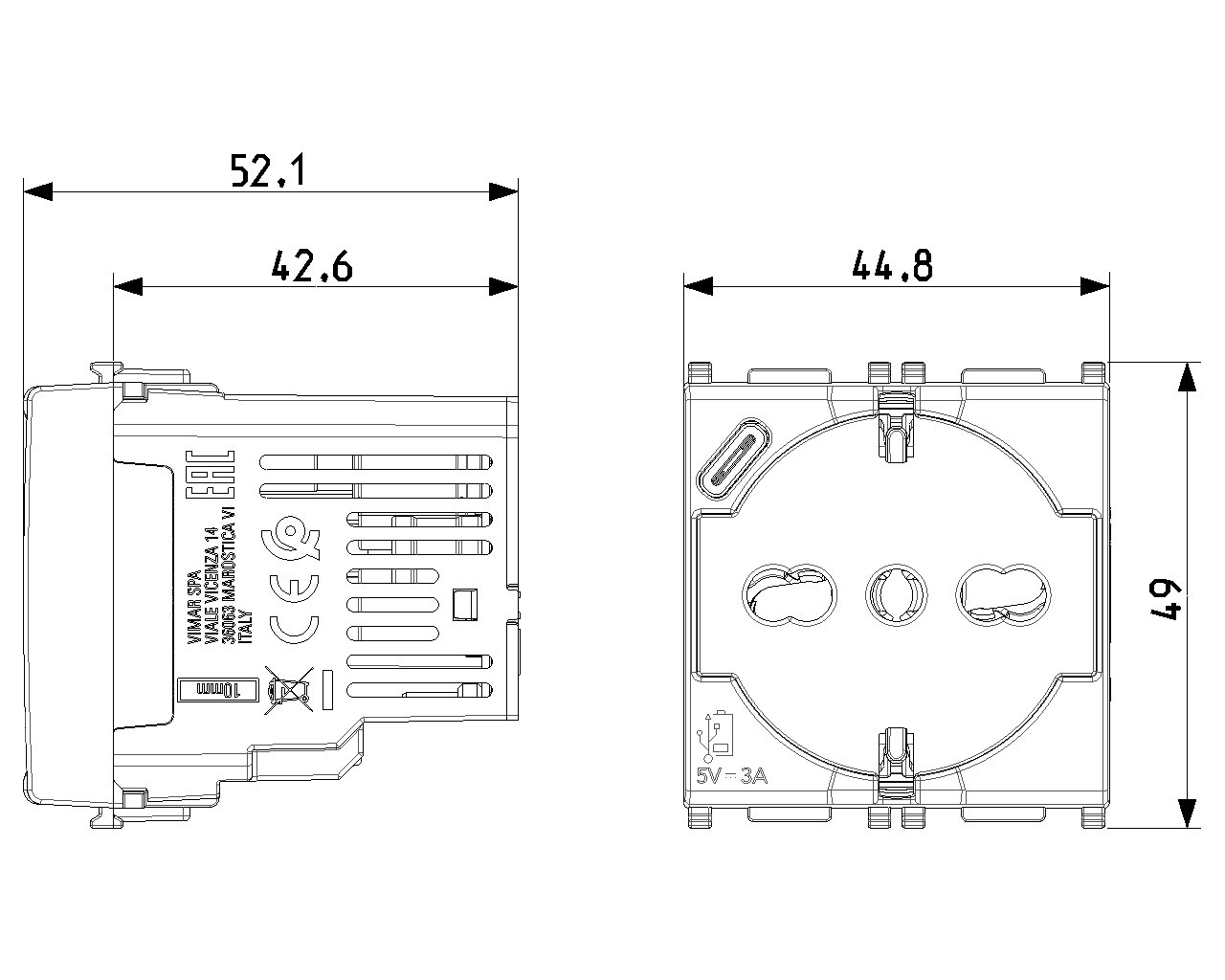

Width of device
44,80 mm
Height of device
49,00 mm
Depth of device
52,10 mm
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Min. depth of built-in installation box
48 mm
Compatible with Amazon Alexa
No
IFTTT support available
No
For heavy conditions (according to VDE)
No

00. CE Marking - EU

10. EAC Eurasian Customs Union

37. Marking - Morocco

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352707061
1 NR
6x5.4x5.3 [cm]
28.5 [g]
Barcode Qty 10 NR
8007352710054
10 NR
28.1x13.1x6 [cm]
358.4 [g]
Barcode Qty 120 NR
8007352710061
120 NR
38.5x29x30 [cm]
4,608 [g]
