2P+E 16A P30 outlet +C16 CB Silver - 14276.SL

Pdf
Vimar - 14276.SL - 2P+E 16A P30 outlet +C16 CB Silver
Vimar - 14276.SL - 2P+E 16A P30 outlet +C16 CB Silver

14276.SL
Wiring devices / Traditional wiring devices / PLANA / Devices

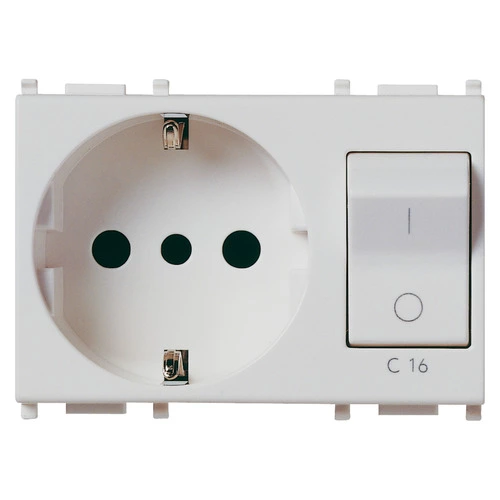

2P+E 16A P30 outlet +C16 CB Silver
2P+E 16 A 250 V~ SICURY socket outlet, Italian standard P30 (lateral and central earth contacts), interlocked with 1P+N C 16 circuit breaker, supply voltage 230 V~ 50 Hz, breaking capacity 3000 A, Silver - 3 modules

Product Status
3 - Active

Class group
Domestic switching devices
Class
Socket outlet
Model
Italian type P30
Number of units
2
Number of modules (module system)
3
Number of socket outlets switchable
1
Imprint/indication
None
Connection type
Screwed terminal
With hinged lid
No
With enhanced contact protection
Yes
Label space/information surface
Yes
Colour
Silver
RAL-number (similar)
9006
Metallic colour
No
Transparent
No
Lockable
No
Eject-mechanism
No
Insulated mounting
No
With function lighting
No
With orientation lighting
No
Over voltage protection
No
Fault current protection
No
With miniature fuse
No
Mounting method
Flush-mounted
Type of fastening
Snap mounting (engagement)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Glossy
With loop through function
No
With on/off switch
Yes
Rotated central insert
No
Nominal current
16 A
Nominal voltage
230 V
Frequency
50,00 - 50,01 HZ
Suitable for degree of protection (IP)
IP20
Impact strength
Other

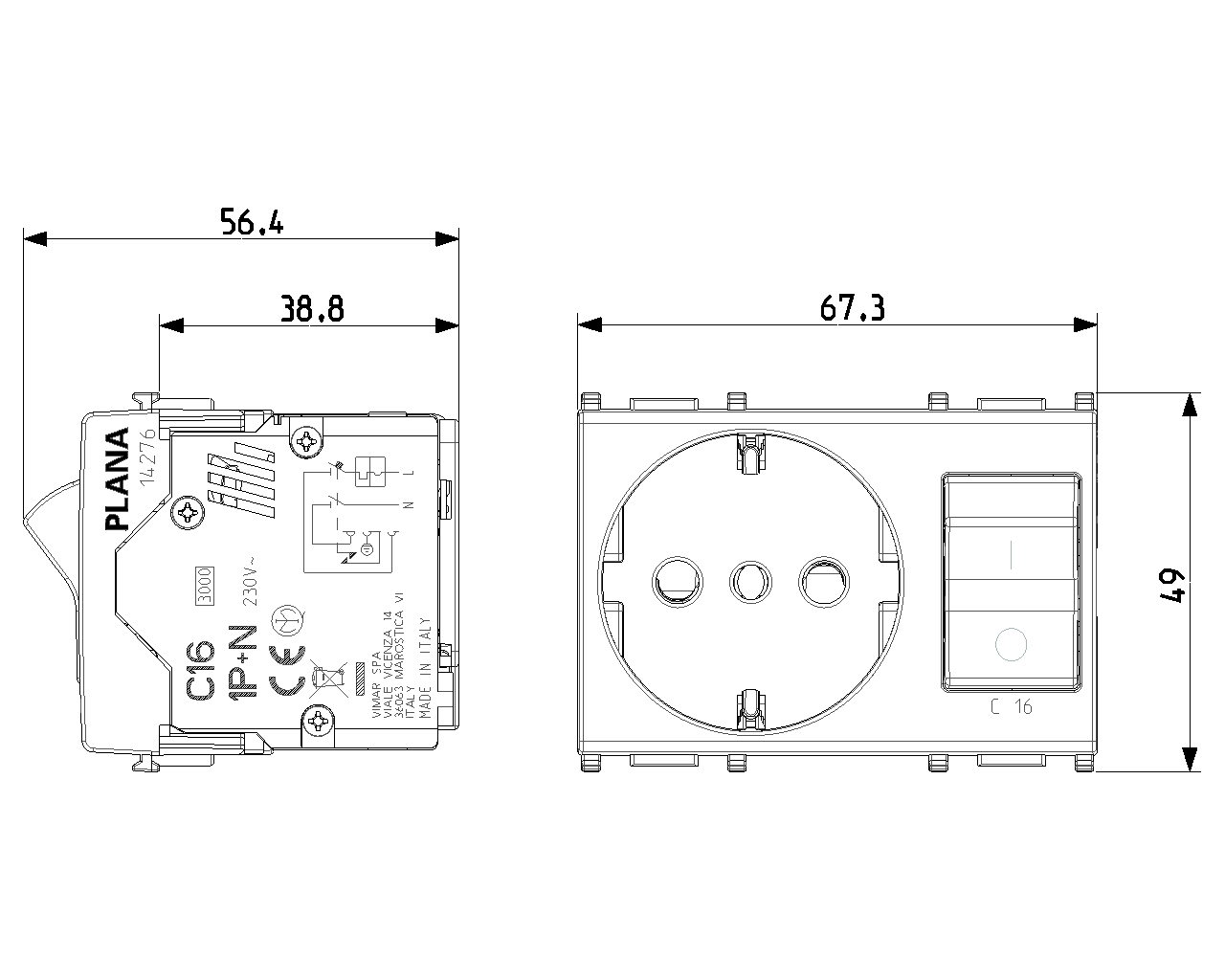

Device width
67,30 mm
Device height
49,00 mm
Device depth
56,30 mm

00. CE Marking - EU

01. IMQ - Italy

13. SNI-MGI - Indonesia

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 5 NR

Barcode

Barcode Qty 1 NR
8007352318816
1 NR
5.2x5.7x7.6 [cm]
117.61 [g]
Barcode Qty 5 NR
8007352318823
5 NR
21.4x11.6x6 [cm]
645.67 [g]
