LED-emergency lamp 3M 120-230V white - 14384

Pdf

14384
Wiring devices / Traditional wiring devices / PLANA / Devices

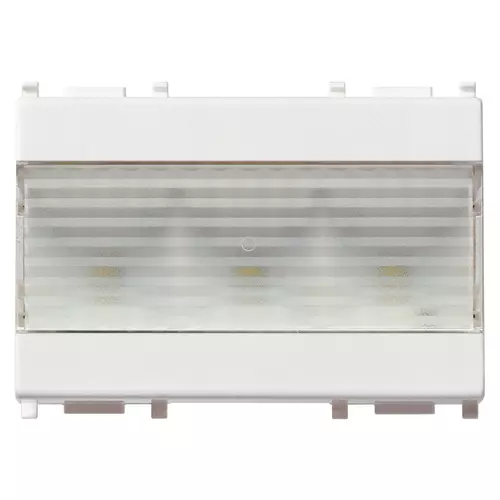

LED-emergency lamp 3M 120-230V white
Lamp with high-efficiency LED, supply voltage 120-230 V~ 50-60 Hz, automatic emergency device, 3 rechargeable AAA 1,2 V batteries, 1 hour of operating time, white - 3 modules

Product Status
3 - Active

Sheets, Manuals, Documentation

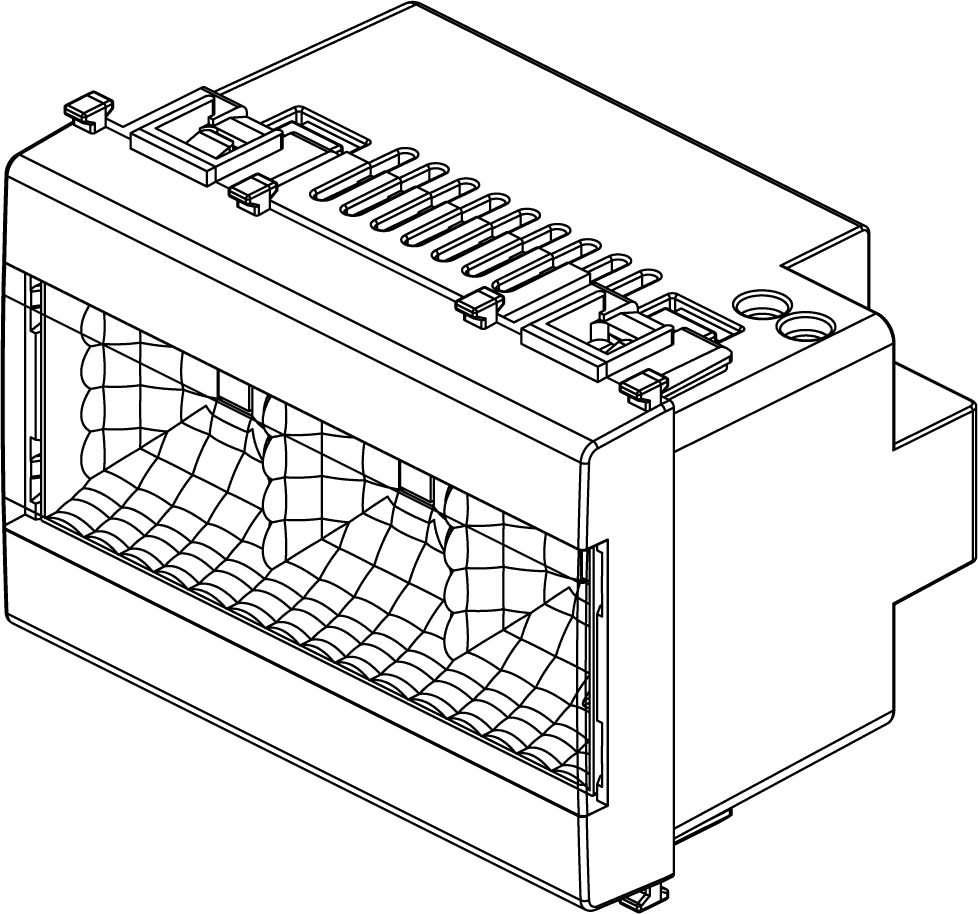

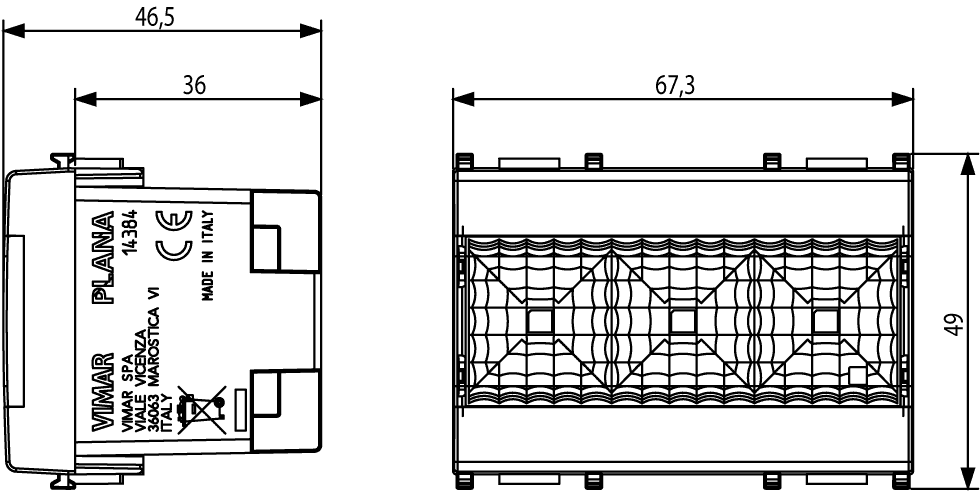

Drawings

Class group
Luminaires
Class
Emergency luminaire
Mounting method
Built-in
Monitoring equipment
None
With remote switch connection
No
Power supply system
Peripheral (individual battery)
Battery quality
NiMH
Lamp type
LED not exchangeable
With light source
Yes
Housing material
Plastic
Housing colour
White
Material cover
Without cover
Voltage type
AC
Nominal voltage
120,00 - 230,00 V
Degree of protection (IP)
IP40
Protection class
II
Max. system power
0,50 W
Rated luminous flux according to IEC 62722-2-1
22
Width
67,30 mm
Height/depth
46,70 mm
Built-in width
67,30 mm
Built-in height/depth
36,50 mm

00. CE Marking - EU

37. Marking - Morocco

43. UKCA mark - Great Britain

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352303010
1 NR
11.2x9.6x9.8 [cm]
183.72 [g]
