1P C16 CB 120-230V white - 14404.16

Pdf
14404.16

Plana / Devices / Current breaker switches (CBs)

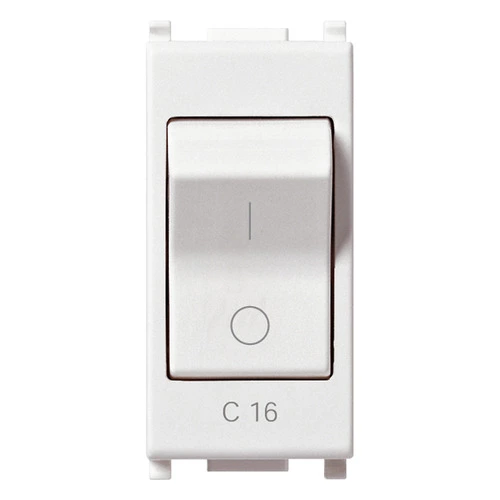

1P C16 CB 120-230V white
1P C 16 circuit breaker, supply voltage 120-230 V~ 50-60 Hz, breaking capacity 1500 A, white

Product Status
3 - Active

Class group
Circuit breakers and fuses
Class
Miniature circuit breaker (MCB)
Release characteristic
C
Number of poles (total)
1
Number of protected poles
1
Rated current
16 A
Rated voltage
230 v
Rated short-circuit breaking capacity Icn EN 60898 at 230 V
1,50 kA
Voltage type
AC
Frequency
50 - 60 HZ
Current limiting class
1
Suitable for flush-mounted installation
Yes
Concurrently switching N-neutral
No
Over voltage category
3
Width in number of modular spacings
1
Built-in depth
38,00 mm
Degree of protection (IP)
IP40
Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352107830
1 NR
6x2.8x5.3 [cm]
49.2 [g]
Barcode Qty 10 NR
8007352107847
10 NR
14.4x13.1x6 [cm]
543 [g]
Barcode Qty 200 NR
8007352650220
200 NR
50.5x20x28 [cm]
11,300 [g]
