Change-over relay actuator white - 14472

Pdf
Vimar - 14472 - Change-over relay actuator white
Vimar - 14472 - Change-over relay actuator white

14472
Wiring devices / Traditional wiring devices / PLANA / Devices

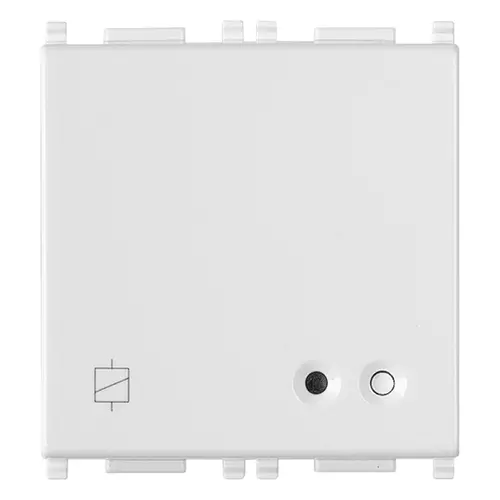

Change-over relay actuator white
Actuator with 3 A 30 V change-over relay output, weiß - 2 modules

Product Status
2 - Will be discontinued

Sheets, Manuals, Documentation

Drawings

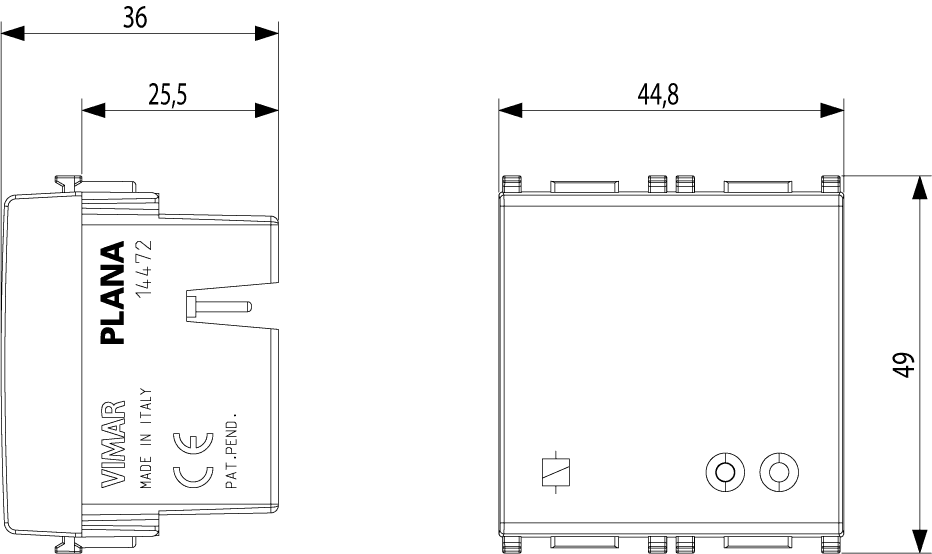

view encumbered art. 14472
PNG DXF

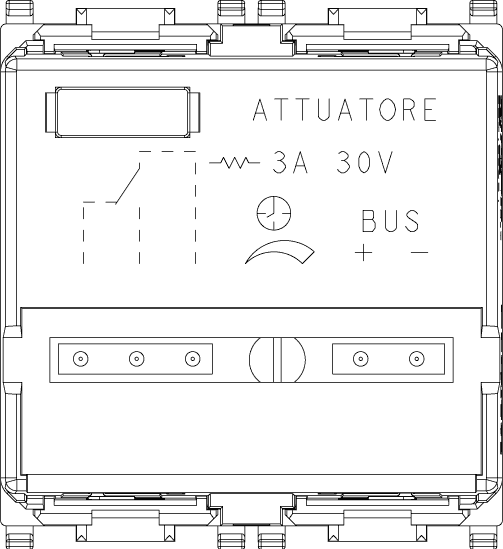

rear view art. 14472
PNG DXF

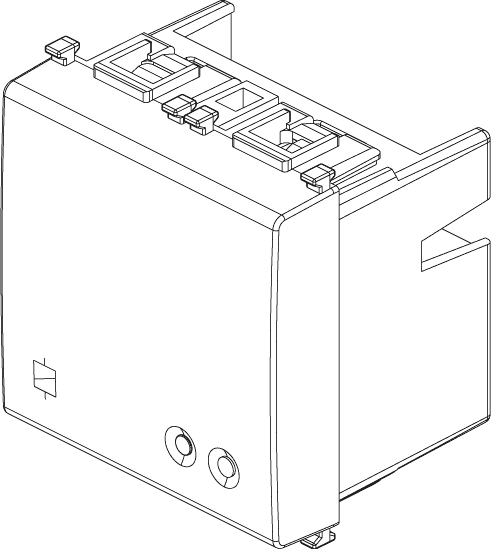

3D view art. 14472
PNG DXF
Class group
Alarm installations, emergency call and signalling
Class
Access control system
Standalone
No
Networkable
No
PC-binding
No
Type of interface
Bus system
Signalling
Light signal
Mounting method
Flush-mounted
Operating voltage DC
29,00 - 29,01 V
Operating temperature
5 - 35 °C
Degree of protection (IP)
IP40
Colour
White
Material
Plastic
Width
44,80 mm
Height
49,00 mm
Depth
36,00 mm

00. CE Marking - EU

37. Marking - Morocco

43. UKCA mark - Great Britain

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352156456
1 NR
11.2x9.6x9.8 [cm]
100.5 [g]
