2 switches interface 1M white - 14518

Pdf
14518

Plana / Systems / Domotics - devices

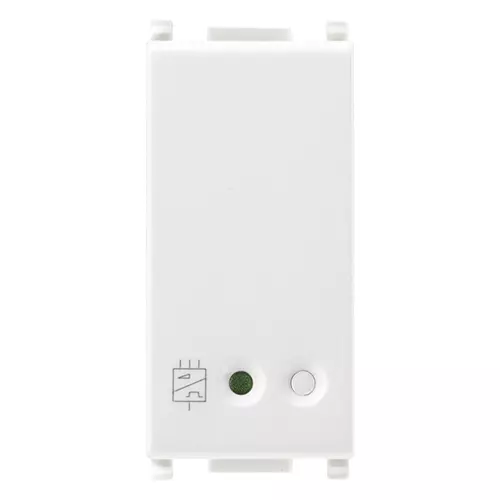

2 switches interface 1M white
Interface for 2 traditional devices, white

Product Status
4 - Active

Class group
Installation bus systems
Class
Interface for bus system
Bus system KNX
No
Bus system KNX radio
No
Bus system radio frequent
No
Bus system LON
No
Bus system Powernet
No
Other bus systems
None
Radio frequent bidirectional
No
Model
Other
Mounting method
Flush mounted (plaster)
Width in number of modular spa
1
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (akin)
9003
Transparent
No
Bus connection included
Yes
With LED indication
Yes
Degree of protection (IP)
IP40
Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352344983
1 NR
5.1x4.3x5.3 [cm]
50.32 [g]
Barcode Qty 5 NR
8007352344990
5 NR
14.4x11.6x6 [cm]
251.6 [g]
Barcode Qty 60 NR
8007352647282
60 NR
36.5x33x13.5 [cm]
3,438 [g]
