Speaker connector white - 14583

14583

Plana / Systems / Stereophonic sound systems

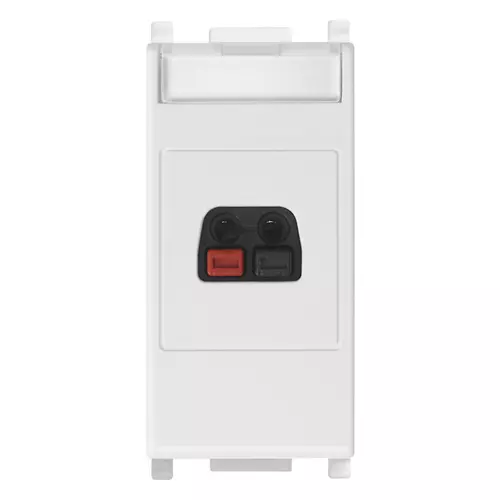

Speaker connector white
Spring connector for speaker, white

Product Status
3 - Active

Class group
Domestic switching devices
Class
Insert/cover for communication technolog
Assembly arrangement
Modular device for domestic switching devices
Utilization
Other
Support ring
No
With dust cover
No
With imprint
Yes
Mounting method
Flush mounted (plaster)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (akin)
9003
Transparent
No
Type of fastening
Engage (snap)
Number of modules (module syst
1
With strain relief
No
Luster terminal
No
Suitable for degree of protect
IP20

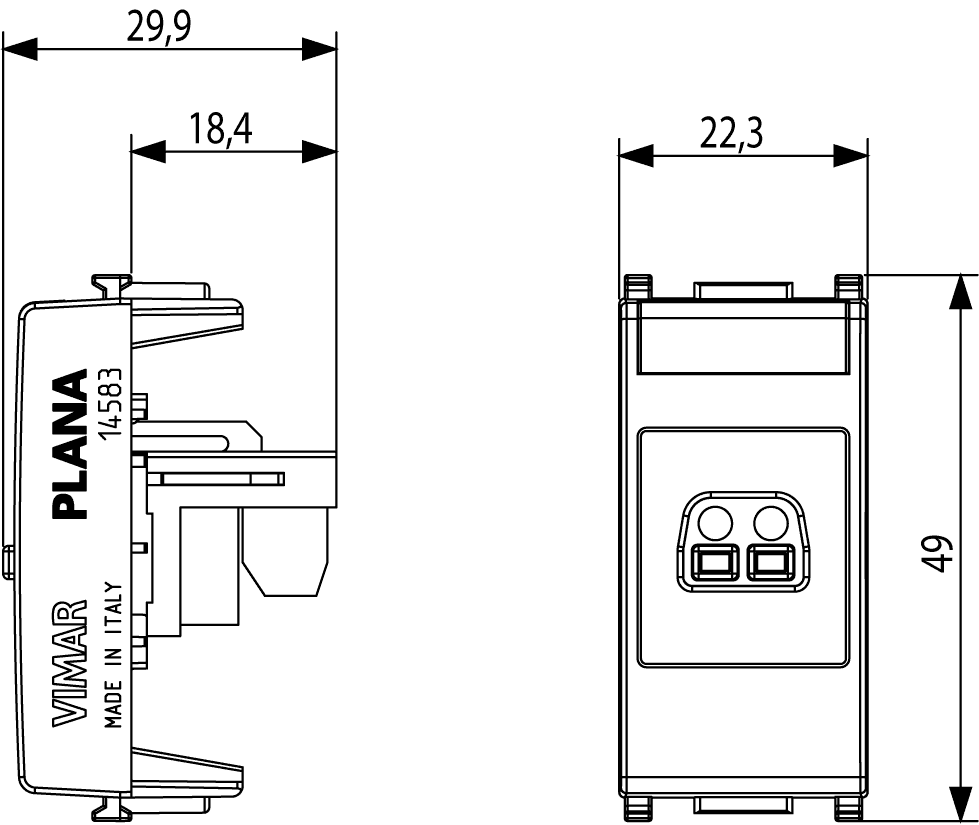

Width of device
22,30 mm
Height of device
49,00 mm
Depth of device
29,90 mm
Minimum order quantity: 1 NR

Barcode

8007352400320
1 NR
5.1x4.3x5.3 [cm]
20.69 [g]
8007352400337
10 NR
26.9x11.6x4.9 [cm]
274.09 [g]
8007352647312
200 NR
47.5x27x29 [cm]
6,000 [g]
