1P 10AX 2-way switch grey - 16004

Pdf

16004
Wiring devices / Traditional wiring devices / IDEA / Devices

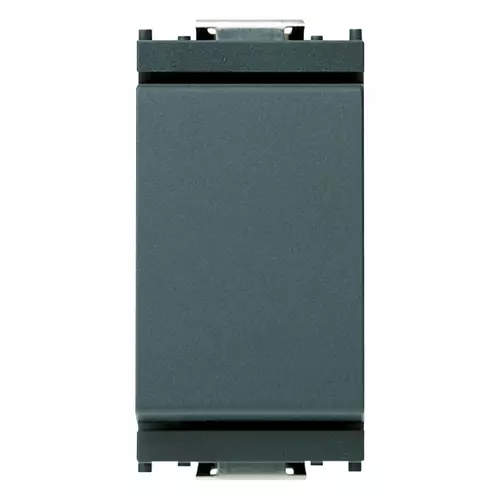

1P 10AX 2-way switch grey
1P 10 AX 250 V~ 2-way switch, grey. Max 100 W for self-ballasted lamps (IEC 60669-1:2017)

Product Status
3 - Active

Drawings

Class group
Domestic switching devices
Class
Installation switch
Wiring system
Two-way switch
Method of operation
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
1
Push button switch
Yes
Number of rockers
1
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7015
Label space/information surface
Yes
Illumination
No
Function lighting
Other
Type of lighting
Other
Suitable for degree of protection (IP)
IP40
Nominal voltage
250 V
Rated current
10,00 A
Feedback-signal contact
No
Connection type
Screwed terminal
Washing machine switch
No
Device width
24,80 mm
Device height
50,10 mm
Device depth
36,50 mm
Built-in depth
23,30 mm

00. CE Marking - EU

01. IMQ - Italy

10. EAC Eurasian Customs Union

19. NOM - Mexico

20. IQC - Argentina

37. Marking - Morocco

43. UKCA mark - Great Britain

Minimum order quantity: 50 NR

Barcode

Barcode Qty 1 NR
8007352066311
1 NR
4.1x2.8x5.3 [cm]
29.8 [g]
Barcode Qty 50 NR
8007352066328
50 NR
21.4x11.6x14.2 [cm]
1,583.13 [g]
Barcode Qty 500 NR
8007352263147
500 NR
57.5x22.5x30 [cm]
16,363.33 [g]
