16145.B
Wiring devices / Traditional wiring devices / IDEA / Devices

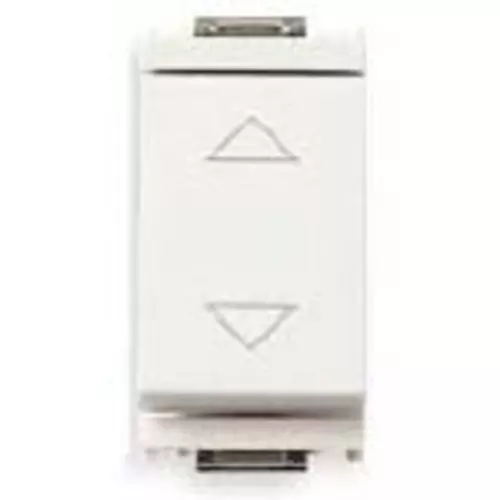

2P 10AX 2-way switch white
2P 10 AX 250 V~ 2-way switch (6 terminals) with directional arrows and central OFF position, white. Max 100 W for self-ballasted lamps (IEC 60669-1:2017)
Product Status
3 - Active
Domestic switching devices
Push button
Modular device for domestic switching devices
Other
Rocker
1
100
2
250 V
10,00 A
No
No
Flush-mounted
Engage (snap)
Plastic
Thermoplastic
Yes
Untreated
Matt
White
9001
No
Yes
IP40
24,80 mm
50,10 mm
43,60 mm
00. CE Marking - EU
01. IMQ - Italy
14. TSE - Turkey
20. IQC - Argentina
37. Marking - Morocco
Barcode



Question: | Can the product be fully opened by pressing the push button once? |
---|---|
Answer: | Yes. Upon pressure, the product even remains on after you release it, allowing the continuous closure of the circuit to which it is connected without having to hold it down. |
