2P+E 16A P17/11 outlet red - 16203.R

Pdf

16203.R
Wiring devices / Traditional wiring devices / IDEA / Devices

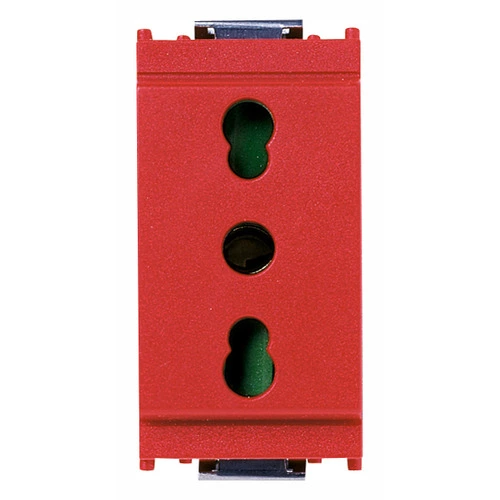

2P+E 16A P17/11 outlet red
2P+E 16 A 250 V~ SICURY Bpresa socket outlet, Italian standard P17/11, red

Product Status
3 - Active

Drawings

Class group
Domestic switching devices
Class
Socket outlet
Model
Italian type Bipasso
Number of units
1
Number of modules (module system)
1
Number of socket outlets switchable
0
Imprint/indication
None
Connection type
Screwed terminal
With hinged lid
No
With enhanced contact protection
Yes
Label space/information surface
Yes
Colour
Red
RAL-number (similar)
3001
Metallic colour
No
Transparent
No
Lockable
No
Eject-mechanism
No
Insulated mounting
No
With function lighting
No
With orientation lighting
No
Over voltage protection
No
Fault current protection
No
With miniature fuse
No
Mounting method
Flush-mounted
Type of fastening
Snap mounting (engagement)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
With loop through function
No
With on/off switch
No
Rotated central insert
No
Nominal current
16 A
Nominal voltage
250 V
Frequency
50,00 - 60,00 HZ
Suitable for degree of protection (IP)
IP20
Impact strength
Other
Device width
24,80 mm
Device height
50,10 mm
Device depth
35,00 mm

00. CE Marking - EU

37. Marking - Morocco

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352100596
1 NR
4.1x2.8x5.3 [cm]
31.13 [g]
Barcode Qty 20 NR
8007352263550
20 NR
21.4x11.6x6 [cm]
681.73 [g]
Barcode Qty 200 NR
8007352637603
200 NR
30.5x25.5x22.5 [cm]
7,118 [g]
