RJ11 phone jack 6/4 white - 16335.B

Pdf
Vimar - 16335.B - RJ11 phone jack 6/4 white
Vimar - 16335.B - RJ11 phone jack 6/4 white

16335.B
Wiring devices / Traditional wiring devices / IDEA / Devices

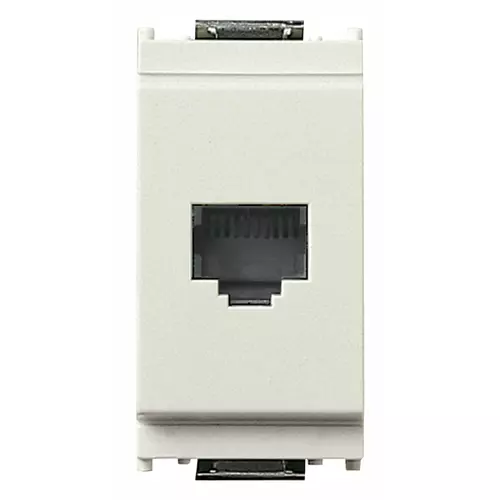

RJ11 phone jack 6/4 white
RJ11 phone jack, 6-position 4-conductor (6/4), screw terminal, white

Product Status
3 - Active

Drawings

view encumbered art. 16335.B
PNG DXF
rear view art. 16335.B
PNG DXF
3D view art. 16335.B
PNG DXF
Class group
Domestic switching devices
Class
Insert/cover for communication technology
Assembly arrangement
Modular device for domestic switching devices
Utilization
UAE/IAE (ISDN)
Support ring
No
With dust cover
No
With hinged lid
No
With imprint
No
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9001
Transparent
No
Type of fastening
Clamp mounting
Number of modules (module system)
1
With strain relief
No
Luster terminal
No
Suitable for degree of protection (IP)
IP20
Device width
24,80 mm
Device height
50,10 mm
Device depth
43,40 mm

00. CE Marking - EU

10. EAC Eurasian Customs Union

43. UKCA mark - Great Britain

99. WEEE Directive

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352052840
1 NR
5.1x2.8x5.3 [cm]
23.53 [g]
Barcode Qty 20 NR
8007352053113
20 NR
27x11.6x6 [cm]
541.53 [g]
Barcode Qty 120 NR
8007352651081
120 NR
37.5x30x13.5 [cm]
3,960 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
