RJ45 Cat5e 3M UTP outlet white - 16357.B

Pdf
16357.B

Net Safe / Copper / RJ/EDP socket outlets

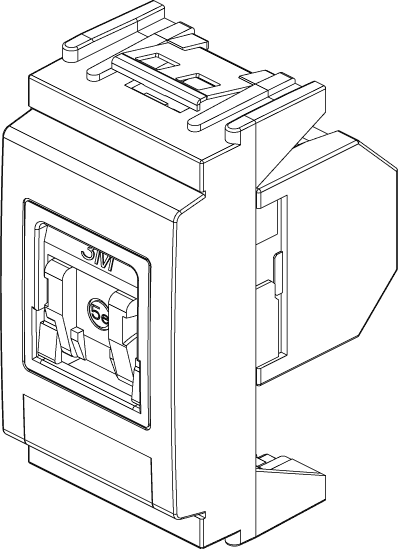

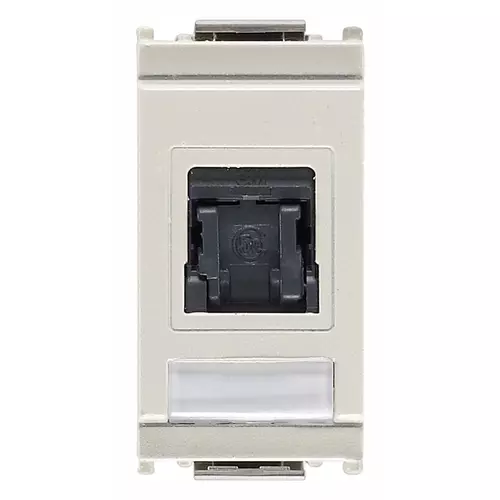

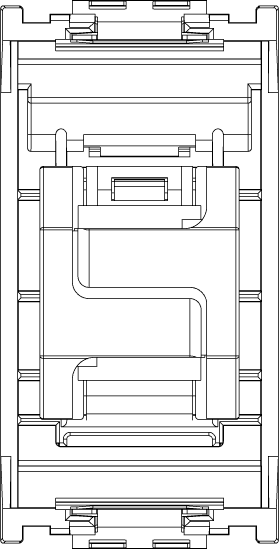

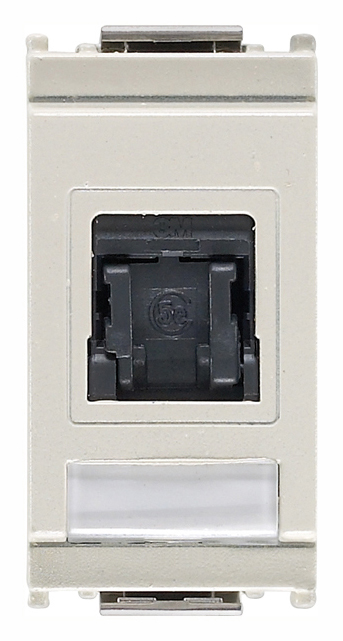

RJ45 Cat5e 3M UTP outlet white
RJ45 outlet with 3M connector, Cat. 5e, unshielded, 8 contacts, T568A/B universal wiring, insulation-piercing terminals without tool use, white

Product Status
3 - Active

Class group
Data and telecommunication
Class
Modular connector
Model
Bus (jack)
Type of connector
RJ45 8(8)
Screened
No
Category
5E
Connection type
Crimp
Special tool necessary
No
Suitable for round cable
Yes
Suitable for flat cable
No
Suitable for litz wire conduct
No
Suitable for solid core
No
Colour
White
Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352075818
1 NR

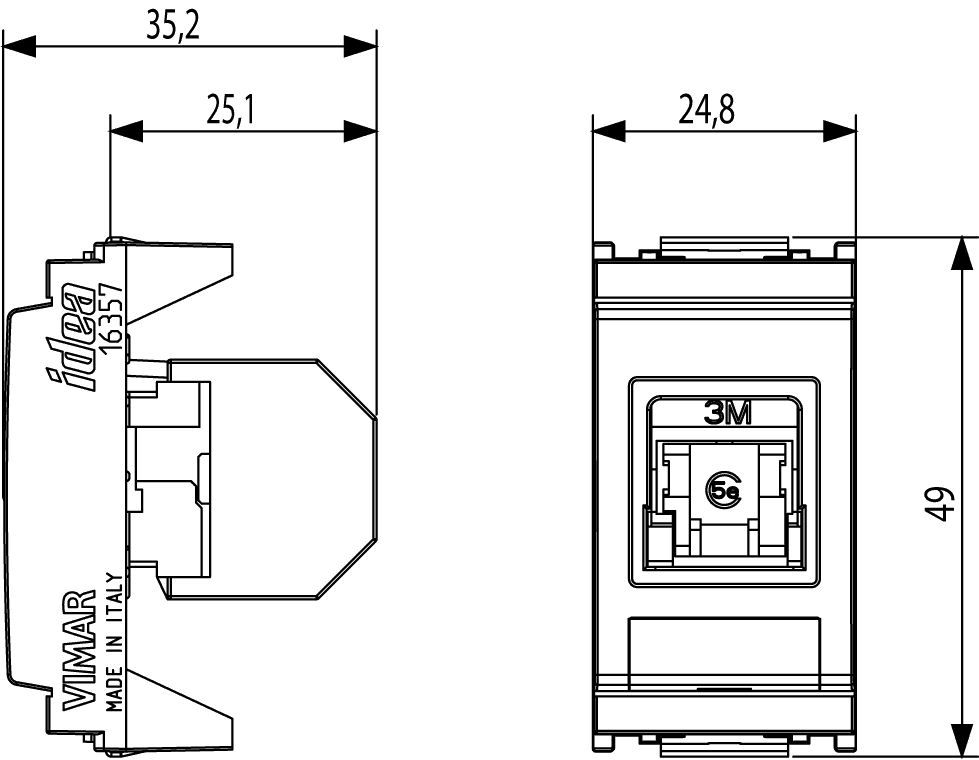

6x2.8x5.3 [cm]
24 [g]
Barcode Qty 10 NR
8007352075825
10 NR
14.4x13.1x6 [cm]
294.33 [g]
