24V 50Hz bell grey - 16401

Pdf
16401

Idea / Devices / Acoustic signallings

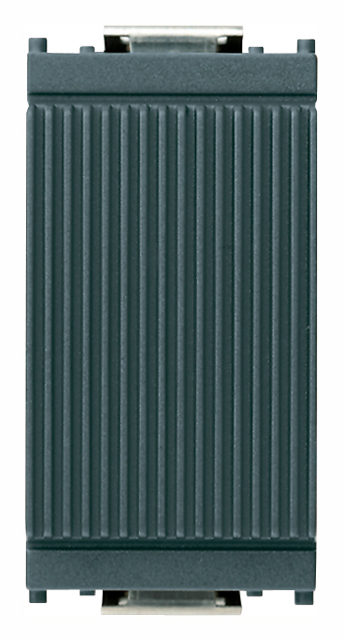

24V 50Hz bell grey
Bell, 24 V~ (SELV), 50 Hz 8 VA, grey

Product Status
3 - Active

Class group
Optic and acoustic signalling equipment
Class
Bell
Colour housing
Grey
Material housing
Plastic
Loudness
70 dB
Nominal voltage
24 v
Degree of protection (IP)
IP30
Type of current
AC
Electricity consumption
0,33 A
Built-in battery
No
Mounting method
Flush mounted (plaster)
Width in number of modular spa
1
Wireless
No
Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352021907
1 NR

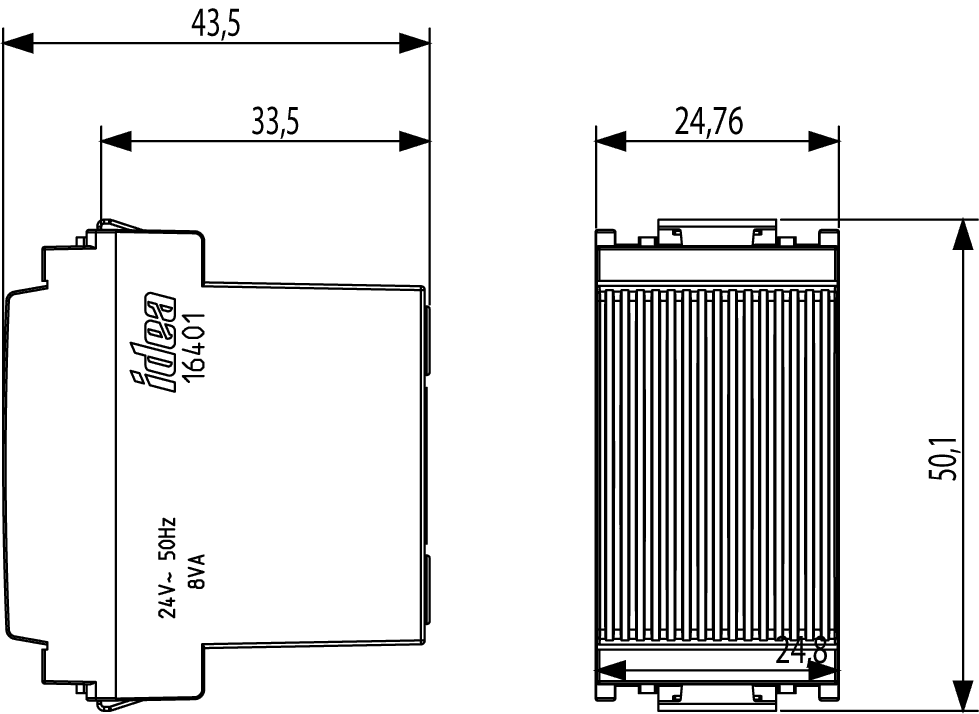

5.1x2.8x5.3 [cm]
61.33 [g]
Barcode Qty 10 NR
8007352263581
10 NR
14.4x11.6x6 [cm]
661.73 [g]
