IoT connected radar sensor 1M greyCode 16629
- 16629
- Wiring devices / View Wireless wiring devices / IDEA / Devices

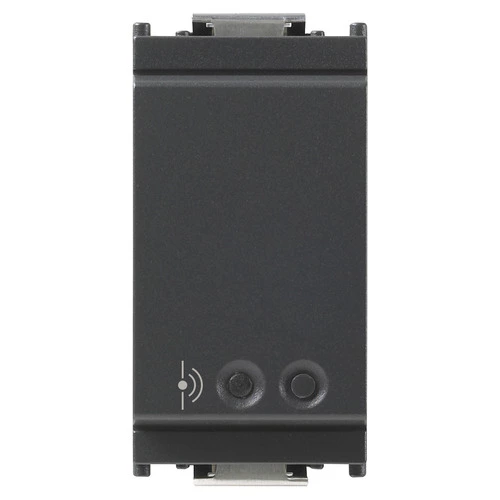

- IoT connected radar sensor 1M grey
- UWB radar sensor, IoT technology on Bluetooth 5.0 standard for the creation of VIEW Wireless mesh system, 1 solid state output for extra low voltage controls (SELV and non SELV), 1 input for external push button for output activation or to recall a scenario, 100-240 V 50/60 Hz power supply, grey
- Product Status
- 3 - Active
You may also be interested in
Sheets, Manuals, Documentation
- Light multilanguage instructions sheet (1450 kb)
- Foglio istruzioni Full (1138 kb)
- Feuille d’instructions Full (1141 kb)
- Hoja de instrucciones Full (1139 kb)
- Full Instructions sheet (1136 kb)
- Φυλλάδιο οδηγιών Full (1280 kb)
- Anweisungsblatt Full (1455 kb)
- ورقة الإرشادات Full (1255 kb)
- Manuale app View Wireless (19693 kb)
- Manuel appli View Wireless (43543 kb)
- Manual app View Wireless (43542 kb)
- Manual View Wireless app (42589 kb)
- Εγχειρίδιο τεχνικού εγκατάστασης (43825 kb)
- Installationsanleitung View Wireless (43598 kb)
Drawings
Class group
Domestic switching devices
Domestic switching devices
Class
Movement sensor/presence detector complete
Movement sensor/presence detector complete
Model
Movement sensor
Movement sensor
Constant light control
No
No
HVAC-control
No
No
Forced switch on
Yes
Yes
Forced switch off
No
No
Animal zone
Yes
Yes
Creep-under protection
No
No
Networkable
Yes
Yes
Scan angle
100
100
Staircase light controller
No
No
Bridging switch
No
No
Max. reach frontally
7 m
7 m
Suitable for wireless transmission
Yes
Yes
Remote operation
Yes
Yes
With remote control
No
No
Response value sensitivity adjustable
Yes
Yes
With signal unit
Yes
Yes
Teach-function for response value luminosity
No
No
Dim function with dimmer basic element
No
No
Mounting method
Flush-mounted
Flush-mounted
Suitable for ceiling mounting
No
No
Connection type
Screwed terminal
Screwed terminal
Material
Plastic
Plastic
Material quality
Thermoplastic
Thermoplastic
Halogen free
Yes
Yes
Surface protection
Untreated
Untreated
Surface finishing
Matt
Matt
Anti-bacterial treatment
No
No
Colour
Grey
Grey
RAL-number (similar)
7015
7015
Transparent
No
No
Degree of protection (IP)
IP40
IP40
Voltage type
AC
AC
Frequency
50 - 60 HZ
50 - 60 HZ
Min. switch-on time
70 s
70 s
Switch-off delay
1.080 s
1.080 s
Detection angle horizontal
0 - 100
0 - 100
Max. switching power
960,00 W
960,00 W
Number of switching zones
1
1
Min. starting current
0 A
0 A
Substation input
No
No
With alarm function
Yes
Yes
Width
2.480,00 mm
2.480,00 mm
Height
50,20 mm
50,20 mm
Depth
4.960,00 mm
4.960,00 mm
Diameter
0,00 mm
0,00 mm
Built-in depth
3.810,00 mm
3.810,00 mm
Built-in length
50,20 mm
50,20 mm
Built-in diameter
0,00 mm
0,00 mm
Compatible with Apple HomeKit
Yes
Yes
Compatible with Google Assistant
Yes
Yes
Compatible with Amazon Alexa
Yes
Yes
37. Marking - Morocco
40. Bluetooth technology
Minimum order quantity: 1 NR
Barcode
8007352709393
1 NR
6x5.4x5.2 [cm]
47.8 [g]
8007352709409
10 NR
28.1x13.1x6 [cm]
555.6 [g]
