3IN 1OUT IoT connected moduleCode 03983
- 03983
- Wiring devices / View Wireless wiring devices / Shared components / Non-modular components

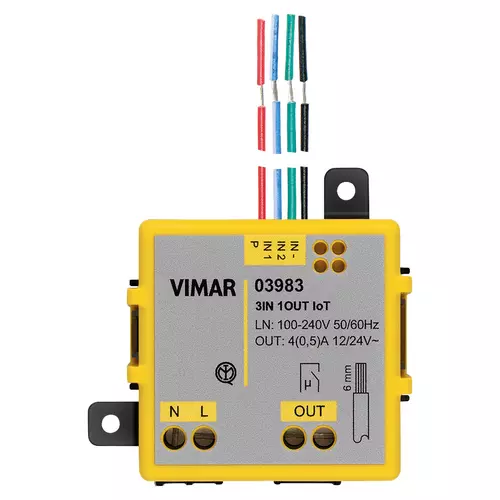

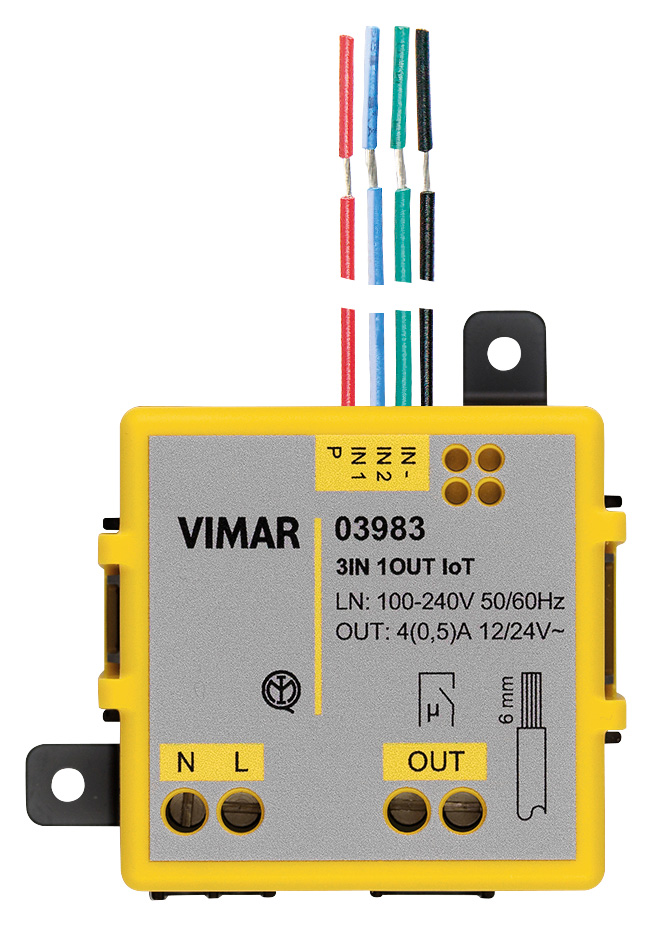

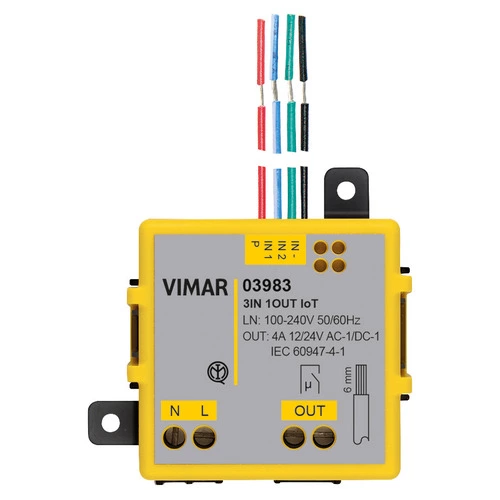

- 3IN 1OUT IoT connected module
- VIEW Wireless electronic module with 3 programmable digital inputs for potential-free contacts, 1 programmable NO/NC relay output for SELV voltage-free contact, IoT technology on Bluetooth 5.0 standard to create the VIEW Wireless mesh system, 100-240 V 50/60 Hz power supply, flush mounting (retrofit)
- Product Status
- 3 - Active
You may also be interested in
Sheets, Manuals, Documentation
- Light multilanguage instructions sheet (1210 kb)
- Foglio istruzioni Full (1748 kb)
- Full ورقة الإرشادات (1941 kb)
- Notice technique Full (1779 kb)
- Ficha de instrucciones Full (1777 kb)
- Full instructions sheet (1770 kb)
- Φυλλάδιο οδηγιών Full (1921 kb)
- Anweisungsblatt Full (1791 kb)
- Manuale app View Wireless (19693 kb)
- Manuel appli View Wireless (43543 kb)
- Manual app View Wireless (43542 kb)
- Manual View Wireless app (42589 kb)
- Εγχειρίδιο τεχνικού εγκατάστασης (43825 kb)
- Installationsanleitung View Wireless (43598 kb)

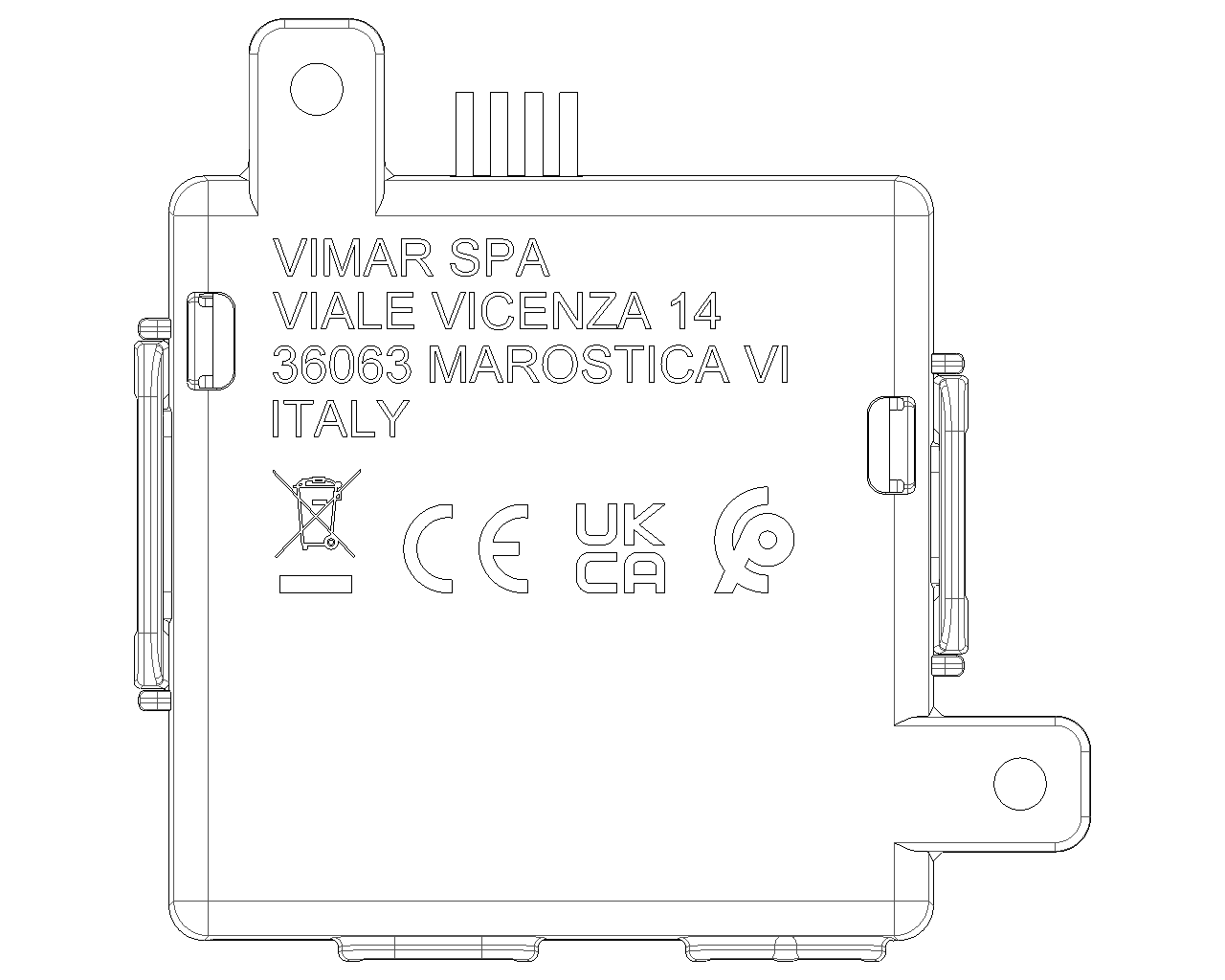

Drawings
Class group
Relays
Relays
Class
Switching relay
Switching relay
Type of electric connection
Screw connection
Screw connection
Complete with socket
Yes
Yes
With detachable clamps
No
No
With LED indication
No
No
Voltage type for actuating
AC
AC
Drive, polarization
Polarity free
Polarity free
Degree of protection (IP)
IP20
IP20
Width
55,10 mm
55,10 mm
Height
54,30 mm
54,30 mm
Depth
23,00 mm
23,00 mm
01. IMQ - Italy
37. Marking - Morocco
40. Bluetooth technology
Minimum order quantity: 1 NR
Barcode
8007352761254
1 NR
6x5.4x5.2 [cm]
49 [g]
8007352761261
60 NR
37.5x30x13.5 [cm]
3,300 [g]
