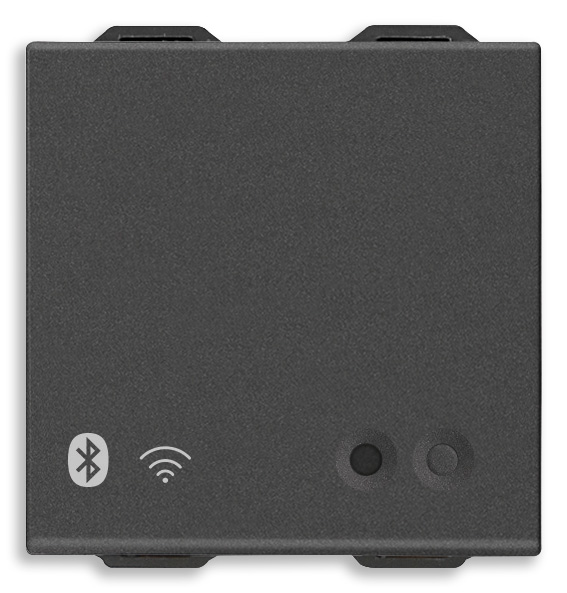

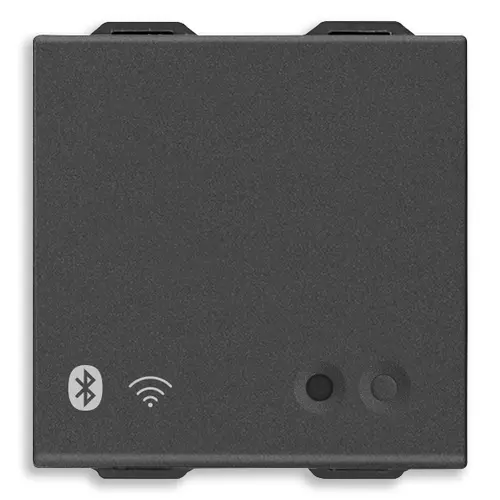

IoT connected gateway 2M carbon matt - 09597.CM

Pdf
Vimar - 09597.CM - IoT connected gateway 2M carbon matt
Vimar - 09597.CM - IoT connected gateway 2M carbon matt

09597.CM
Wiring devices / View Wireless wiring devices / NEVE UP / Devices

IoT connected gateway 2M carbon matt

Product Status
3 - Active

Class group
Installation bus systems
Class
System interface/media gateway for bus system
Bus system KNX
No
Bus system KNX-RF (Radio Frequent)
No
Bus system radio frequent
Yes
Bus system LON
No
Bus system Powernet
No
Other bus systems
Other
Radio frequent bidirectional
Yes
Model
Bluetooth interface
Mounting method
Flush-mounted
Width in number of modular spacings
0
Number of channels
0
Max. number of devices per channel
0
Demounting protection
No
With LED indication
Yes
Updateable
Yes
Operating voltage
100,00 - 240,00 V
Voltage type
AC
Power consumption
90,00 W
Protocol
Other
Provider dependent
No
Visualization
No
Web-Server
Yes
Radio interface
Yes
IR interface
No
Degree of protection (IP)
IP40

00. CE Marking - EU

37. Marking - Morocco

40. Bluetooth technology

43. UKCA mark - Great Britain

46. UK PSTI compliance

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352732520
1 NR
6x5.4x5.2 [cm]
53.4 [g]
Barcode Qty 60 NR
8007352732537
60 NR
37.5x30x13.5 [cm]
3,516 [g]
