IoT connected Gateway 2M white - 30807.B

Pdf
Vimar - 30807.B - IoT connected Gateway 2M white
Vimar - 30807.B - IoT connected Gateway 2M white

30807.B
Wiring devices / View Wireless wiring devices / LINEA / Devices

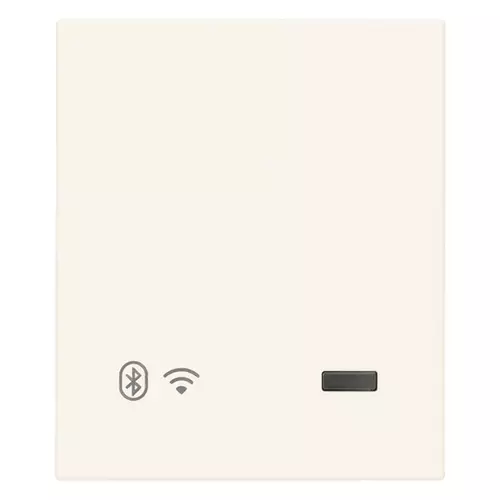

IoT connected Gateway 2M white
IoT Bluetooth Wi-Fi Gateway for integration, configuration, supervision of VIEW Wireless, via Cloud and App for smartphone, tablet, 100-240 V 50/60 Hz power supply, white - 2 modules

Product Status
3 - Active

Class group
Installation bus systems
Class
System interface/media gateway for bus system
Bus system KNX
No
Bus system KNX-RF (Radio Frequent)
No
Bus system radio frequent
Yes
Bus system LON
No
Bus system Powernet
No
Other bus systems
Other
Radio frequent bidirectional
Yes
Model
Bluetooth interface
Mounting method
Flush-mounted
Width in number of modular spacings
2
Demounting protection
No
With LED indication
Yes
Updateable
Yes
Operating voltage
100,00 - 240,00 V
Voltage type
AC
Power consumption
1,00 W
Protocol
Other
Provider dependent
No
Visualization
No
Web-Server
Yes
Radio interface
Yes
IR interface
No
Degree of protection (IP)
IP40

00. CE Marking - EU

01. IMQ - Italy

37. Marking - Morocco

40. Bluetooth technology

41. Wi-Fi CERTIFIED

43. UKCA mark - Great Britain

46. UK PSTI compliance

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352688421
1 NR
6x5.4x5.2 [cm]
59.24 [g]
Barcode Qty 60 NR
8007352744837
60 NR
37.5x30x13.5 [cm]
3,877.68 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
