Tab7S Up video entryphone 2F+ Wi-Fi whit - 40517

Pdf
Vimar - 40517 - Tab7S Up video entryphone 2F+ Wi-Fi whit
Vimar - 40517 - Tab7S Up video entryphone 2F+ Wi-Fi whit

40517
ELVOX Door entry system / 2F/2F+ video door entry system / Video / Video indoor stations

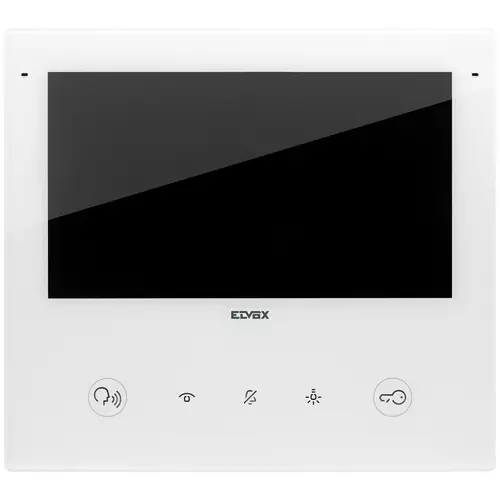

Tab7S Up video entryphone 2F+ Wi-Fi whit
Surface mounting Tab 7S Up hands-free video entryphone for Due Fili Plus system, integrated Wi-Fi for call forwarding to smartphone with dedicated App, 7in touch screen colour LCD display, capacitive keyboard for video door entry functions and intercom calls, video voicemail, teleloop for hearing aids, possibility of scenarios recalling into View Wireless system bracket for fixing in round or rectangular mounting box, surface mounting or semi-flush mounting, white

  • Connected thanks to integrated Wi-Fi
  • With View App, more functions and improved control
  • Multi-system and multi-user
  • Also suitable for refurbishments
  • With Teleloop, optical and acoustic signalling. Crystal-clear sound and visual feedback confirm the activation of the functions, facilitating use for the visually impaired or hearing aid wearers too
  • Possibility of calling up scenarios from the VIEW Wireless connected wiring series from the video entryphone

Product Status
3 - Active

You may also be interested in

40591
40591 - Box for Tab7 Up video entryphone
40596
40596 - Tab 7 Up desktop
K40517.E
K40517.E - Video kit 1-Fam.Tab 7S Up Wi-Fi +1300E
K40517G.01
K40517G.01 - Video kit 1/2-Fam.Tab 7S Up Wi-Fi +41005
732I.E.100
732I.E.100 - 2F+ LSZH cable 2x1 outer laying Eca 100m
732I.E.500
732I.E.500 - 2F+ LSZH cable 2x1 ext. laying Eca 500m
732H.E.100
732H.E.100 - 2F+ PVC cable 2x1 intern.laying Eca 100m
732H.E.500
732H.E.500 - 2F+ PVC-cable internal laying Eca 500m
732I.C.100
732I.C.100 - 2F+ cable 2x1 LSZH Cca 100m purple
Class group
Communication technique
Class
Intercom
Model
Main station
Type of communication
Full-duplex
Type of system
Central
Single call function
Yes
Group call function
Yes
General call function
No
Installation technique
Bus system
Mounting method
Wall-/desk type model
Degree of protection (IP)
Other

00. CE Marking - EU

06. SUBTEL - Chile

32. FCC - USA

35. RCM - Australia

43. UKCA mark - Great Britain

92. RoHS UAE

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352673229
1 NR
23x22x5 [cm]
760 [g]
Barcode Qty 9 NR
8007352673236
9 NR
35x33.5x24.5 [cm]
7,294 [g]
