2F+ cable 2x1 LSZH Cca 100m purple - 732I.C.100

Pdf
732I.C.100

ELVOX Door entry / Due Fili Plus / Cables and connectors

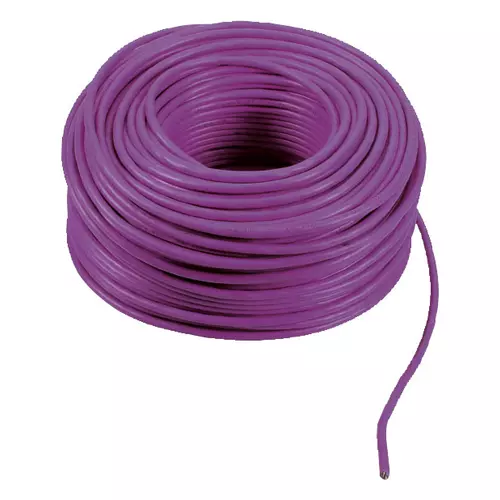

2F+ cable 2x1 LSZH Cca 100m purple
Due Fili Plus cable for internal/external laying, 2x1 mm2 twisted conductors, with insulation and LSZH sheath, Cca class - s1b, d1, a1, operating temperature -25/+70 °C, insulation degree 600/1000 V, suiTable for laying underground in dry ducting or channels with efficient drainage (max. 24 hrs wet), not suiTable for laying directly underground, suiTable for installation with category I energy cable (U0 = 400 V), purple - 100 m bundle

Product Status
3 - Active

Class group
Communication technique
Class
Mounting accessories for door communication
Suitable for
Indoor station
Material
Other
Mounting method
Flush mounted (plaster)
Colour
Other
Minimum order quantity: 100 M

Barcode

Barcode Qty 1 M
8013406307286
1 M
1x1x1 [cm]
71.2 [g]
Barcode Qty 100 M
8013406306906
100 M
30x30x12 [cm]
7,120 [g]

Didn't find the answer you were looking for?

Ask a question

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
