Video kit 1-Fam.Tab 7S Up Wi-Fi +1300E - K40517.E

Pdf
Vimar - K40517.E - Video kit 1-Fam.Tab 7S Up Wi-Fi +1300E
Vimar - K40517.E - Video kit 1-Fam.Tab 7S Up Wi-Fi +1300E

K40517.E
ELVOX Door entry system / 2F/2F+ video door entry system / Video / Video kits

Video kit 1-Fam.Tab 7S Up Wi-Fi +1300E

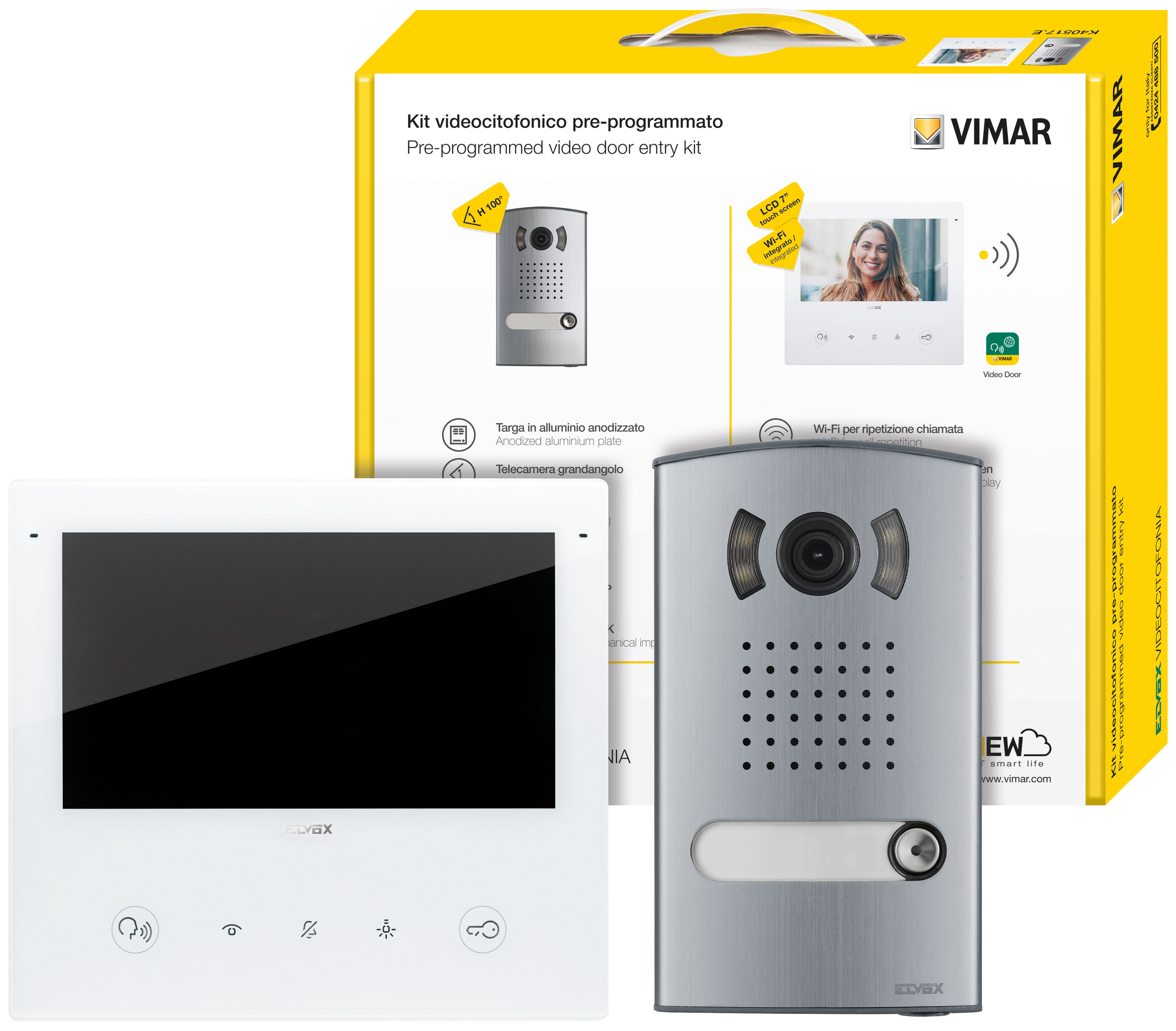

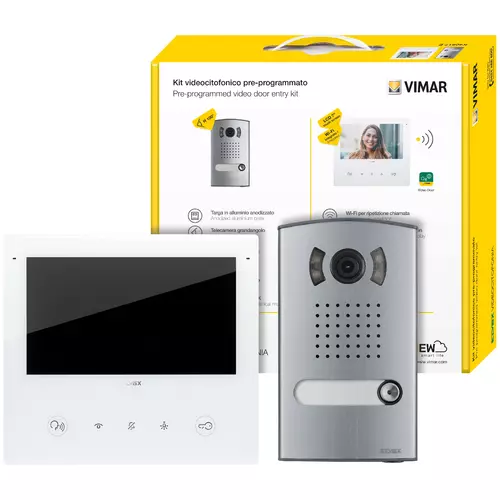

Due Fili Plus one-family colour hands-free video door entry kit containing: 1 Tab 7S Up video entryphone 40517, white, with integrated Wi-Fi for call forwarding to smartphone, 1 1300/E series flush / surface mounting entrance panel 40151, 1 audio/video electronic unit 40135, 1 power supply unit 40110

  • Connected thanks to integrated Wi-Fi
  • With View App, more functions and improved control
  • Multi-system and multi-user
  • Also suitable for refurbishments
  • With Teleloop, optical and acoustic signalling. Crystal-clear sound and visual feedback confirm the activation of the functions, facilitating use for the visually impaired or hearing aid wearers too

Product Status
3 - Active

Kit components

40517
40517 - Tab7S Up video entryphone 2F+ Wi-Fi whit
40151
40151 - Audio/Video color entrance panel 1Fam.
40135
40135 - Audio/Video unit 2F+
40110
40110 - Supply unit 2F+ 100-240V 1 OUT 1,6A

You may also be interested in

40591
40591 - Box for Tab7 Up video entryphone
40596
40596 - Tab 7 Up desktop
732I.E.100
732I.E.100 - 2F+ LSZH cable 2x1 outer laying Eca 100m
732I.E.500
732I.E.500 - 2F+ LSZH cable 2x1 ext. laying Eca 500m
732H.E.100
732H.E.100 - 2F+ PVC cable 2x1 intern.laying Eca 100m
732H.E.500
732H.E.500 - 2F+ PVC-cable internal laying Eca 500m
732I.C.100
732I.C.100 - 2F+ cable 2x1 LSZH Cca 100m purple
Class group
Communication technique
Class
Door station set
With video
Yes
Number of indoor stations
1
Number of outdoor stations
1
Installation technique
Bus system
Mounting method indoor station
Surface mounted
Colour indoor station
White
Mounting method outdoor station
Flush-mounted
Material outdoor station
Aluminium
Colour outdoor station
Silver
Picture system
PAL
Can be connected to smartphone
Yes
Internal communication
Yes
Hands free
Yes
With day/night function
No
Opening angle camera
100
Zoom, pan/tilt function
No
With memory function
Yes
Screen diagonal
177,80 mm
Screen diagonal (inch)
70
Manual adjustable camera
No
Hearing aid compatible
Yes

00. CE Marking - EU

32. FCC - USA

43. UKCA mark - Great Britain

92. RoHS UAE

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352673212
1 NR
36x35.5x9 [cm]
1,841.8 [g]
