2F+ LSZH cable 2x1 ext. laying Eca 500m - 732I.E.500

Pdf
732I.E.500

ELVOX Door entry / Due Fili Plus / Cables and connectors

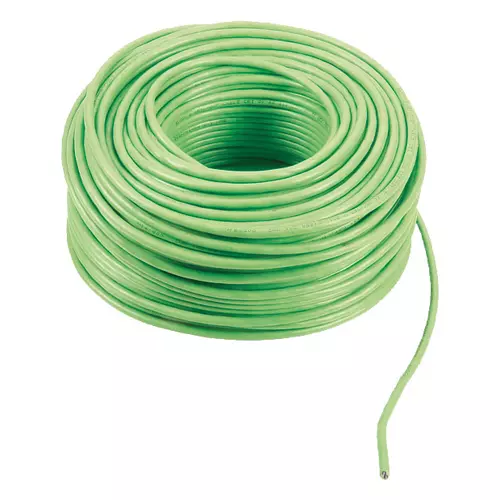

2F+ LSZH cable 2x1 ext. laying Eca 500m
Due Fili Plus cable for internal/external laying, 2x1 mm2 twisted conductors, LSZH sheath and insulation, operating temperature -25/+70°C, 600/1000 V insulation, suitable for laying underground in dry ducting or channels with efficient drainage (max. 24 hrs wet), not suitable for laying directly underground, suitable for installation with category 1 energy cable (U0 = 400 V), green - 500 m reel

Product Status
3 - Active

Class group
Communication technique
Class
Mounting accessories for door communication
Suitable for
Outdoor station
Material
Other
Mounting method
Flush mounted (plaster)
Colour
Green
Minimum order quantity: 500 M

Barcode

Barcode Qty 1 M
8013406301246
1 M
100x0.3x0.3 [cm]
76.8 [g]
Barcode Qty 500 M
8013406301253
500 M
40x40x32 [cm]
37,430 [g]
