Classica plate 18M techn. Idea grey - 16749.14

Pdf

16749.14
Wiring devices / Traditional wiring devices / IDEA / Cover plates

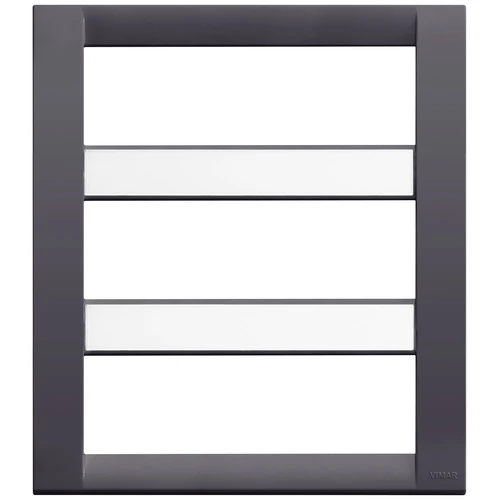

Classica plate 18M techn. Idea grey
18-module Classica cover plate, technopolymer, Idea grey

Product Status
2 - Will be discontinued

You may also be interested in

Class group
Domestic switching devices
Class
Cover frame for domestic switching devices
Number of units
18
Mounting direction
Horizontal and vertical
Number of units horizontal
6
Number of units vertical
3
Number of modules horizontal (module system)
6
Number of modules vertical (module system)
3
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
Grey
RAL-number (similar)
7043
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
206,00 mm
Height
222,00 mm
Depth
11,00 mm
Built-in width
206,00 mm
Built-in height
222,00 mm
Diameter bore hole (opening)
0 mm

00. CE Marking - EU

Minimum order quantity: 5 NR

Barcode

Barcode Qty 1 NR
8007352114692
1 NR
20.6x22.2x1.1 [cm]
101.4 [g]
Barcode Qty 5 NR
8007352114708
5 NR
21.7x22.1x8.3 [cm]
623.67 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
