1P NO 10A push general symbol lums white - 17010.L.B

Pdf
Vimar - 17010.L.B - 1P NO 10A push general symbol lums white
Vimar - 17010.L.B - 1P NO 10A push general symbol lums white

17010.L.B
Wiring devices / Traditional wiring devices / IDEA / Devices

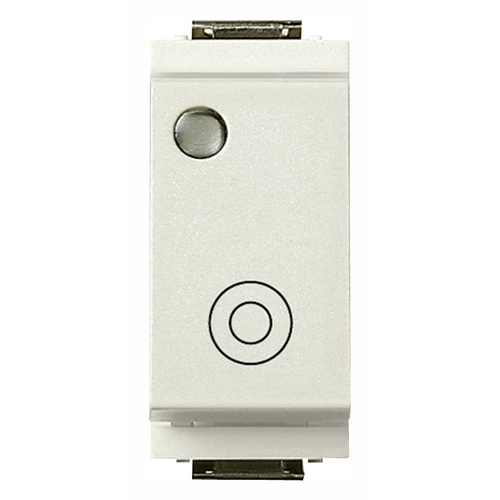

1P NO 10A push general symbol lums white
1P NO 10 A 250 V~ push button, general symbol, luminous, for signalling unit, white - reduced module. Provided without signalling unit

Product Status
3 - Active

Class group
Domestic switching devices
Class
Push button
Assembly arrangement
Modular device for domestic switching devices
Model
Single push button
Method of operation
Push button
Number of rockers
1
Number of modules (module system)
100
Number of poles
1
Nominal voltage
250 V
Rated current
10,00 A
With lighting
Yes
Feedback-signal contact
No
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9001
Transparent
No
Label space/information surface
Yes
Suitable for degree of protection (IP)
IP40
Device width
21,80 mm
Device height
50,10 mm
Device depth
32,50 mm

00. CE Marking - EU

01. IMQ - Italy

10. EAC Eurasian Customs Union

14. TSE - Turkey

15. CCC - China

28. NSW - Australia

37. Marking - Morocco

43. UKCA mark - Great Britain

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352078468
1 NR
4.1x2.8x5.3 [cm]
22.53 [g]
Barcode Qty 20 NR
8007352078475
20 NR
21.4x11.6x6 [cm]
511.07 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
