2P+E 16A P17/11 outlet grey - 17033

Pdf
17033

Idea / Reduced module devices / Italian standard socket outlets

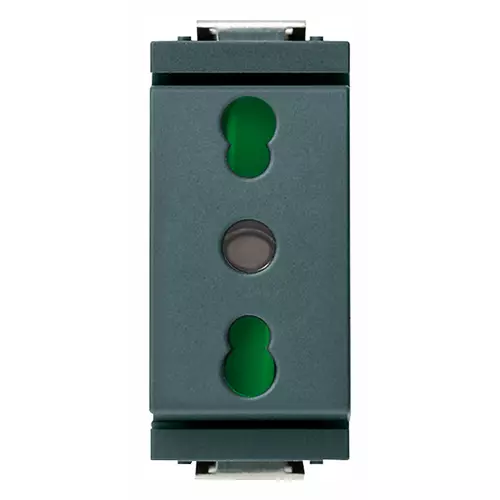

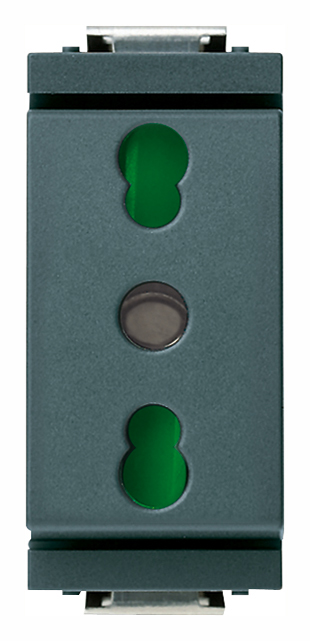

2P+E 16A P17/11 outlet grey
2P+E 16 A 250 V~ SICURY Bpresa socket outlet, Italian standard P17/11, grey - reduced module

Product Status
3 - Active

Class group
Domestic switching devices
Class
Socket outlet
Model
Italian type Bipasso
With built-in USB power supply
No
Number of units
1
Number of modules (module system)
1
Number of socket outlets switchable
0
Imprint/indication
Without imprint
Connection type
Screwed terminal
With hinged lid
No
With child-protection
Yes
Label space/information surface
Yes
Colour
Grey
RAL-number (akin)
7015
Transparent
No
Lockable
No
Eject-mechanism
No
Insulated mounting
No
With function lighting
No
Over voltage protection
No
Fault current protection
No
Mounting method
Flush mounted (plaster)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
With on/off switch
No
With loop through function
No
Rotated central insert
No
Nominal current
16 A
Nominal voltage
250 v
Frequency
50,00 - 60,00 HZ
Suitable for degree of protection (IP)
IP20
For heavy conditions (in accordance with VDE)
No
Impact strength
Other

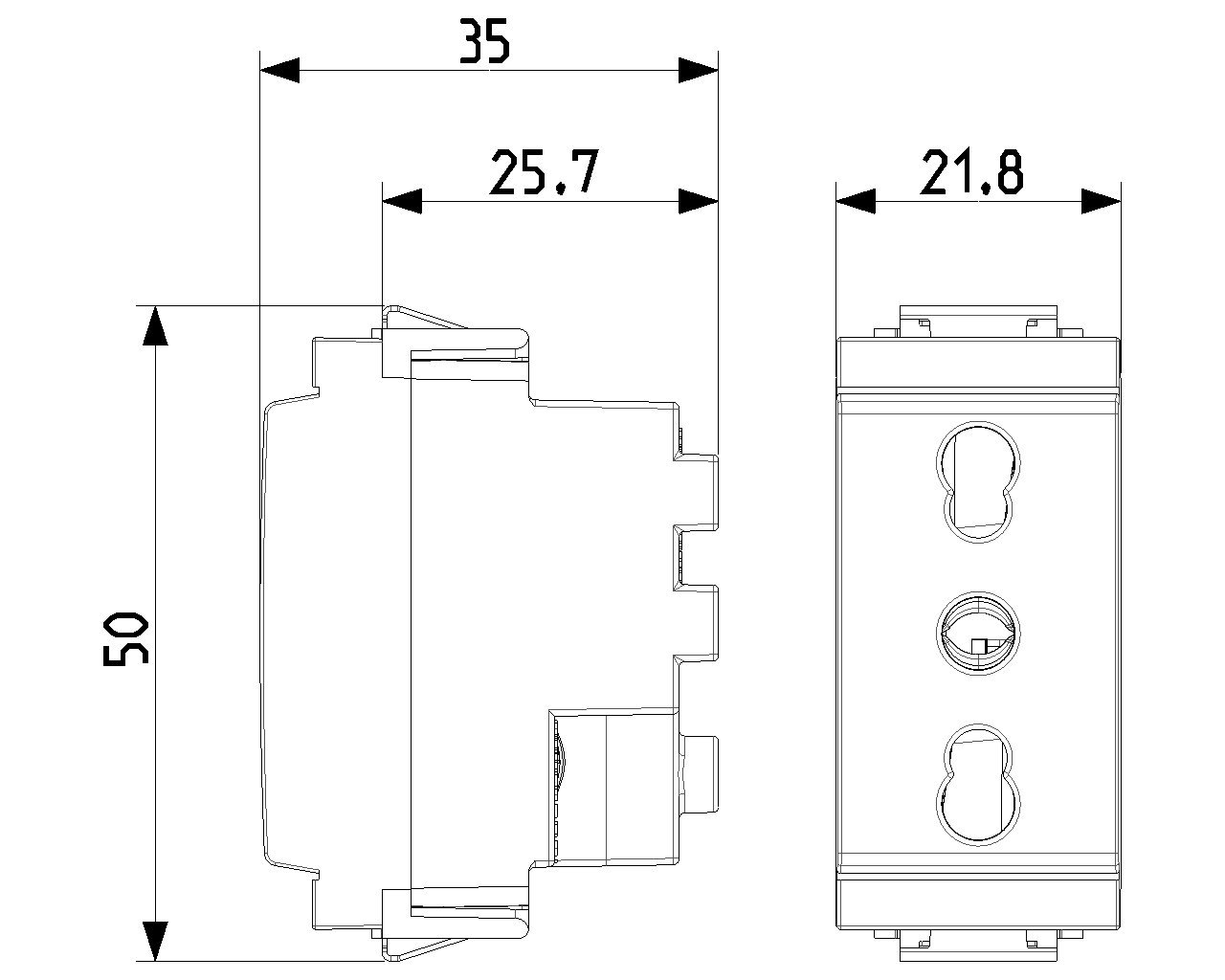

Width of device
21,80 mm
Height of device
50,10 mm
Depth of device
36,50 mm
Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352005693
1 NR
4.1x2.8x5.3 [cm]
28.73 [g]
Barcode Qty 20 NR
8007352005709
20 NR
21.4x11.6x6 [cm]
638.93 [g]
Barcode Qty 200 NR
8007352639430
200 NR
30.5x25.5x22.5 [cm]
7,060 [g]
