17066.01
Wiring devices / Traditional wiring devices / IDEA / Devices

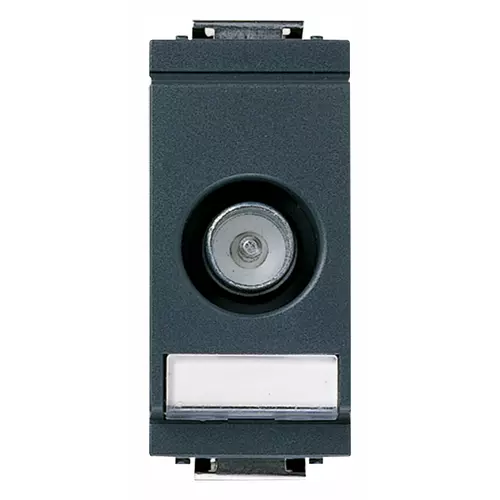

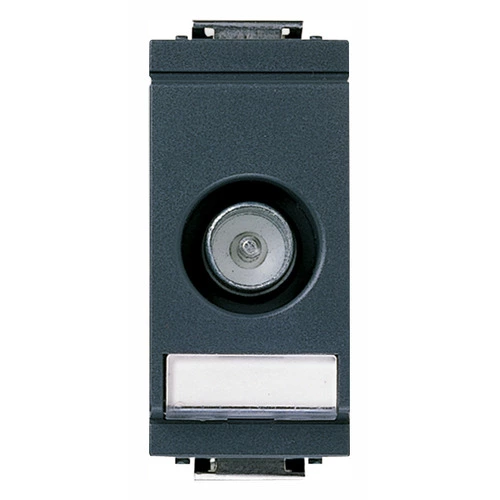

TV-RD-SAT single conn.male outlet 1dB g
Coaxial TV-RD-SAT 5-2400 MHz socket outlet, single connection, with IEC 60169-2 male connector, connection attenuation 1 dB, grey - reduced module. Allows the passage of d.c. current and control signals (24 V 500 mA max).
Product Status
3 - Active
Drawings
Class group
Antenna and satellite technique
Antenna and satellite technique
Class
Antenna socket box
Antenna socket box
Model
End socket
End socket
Cover
None
None
Tap loss at 860 MHz
0,10 dB
0,10 dB
Tap loss at 2150 MHz
0,20 dB
0,20 dB
Number of outlets
1
1
Suitable for remote power supply
Yes
Yes
Type of fastening
Snap mounting (engagement)
Snap mounting (engagement)
Colour
Grey
Grey
RAL-number (similar)
7015
7015
Material
Plastic
Plastic
Minimum order quantity: 20 NR
Barcode
8007352011113
1 NR
4.1x2.8x5.3 [cm]
41.2 [g]
8007352011397
20 NR
21.4x11.6x6 [cm]
881 [g]
