Frame 2reducedM+claws for ø60mm - 17082

17082
Wiring devices / Traditional wiring devices / IDEA / Mounting frames

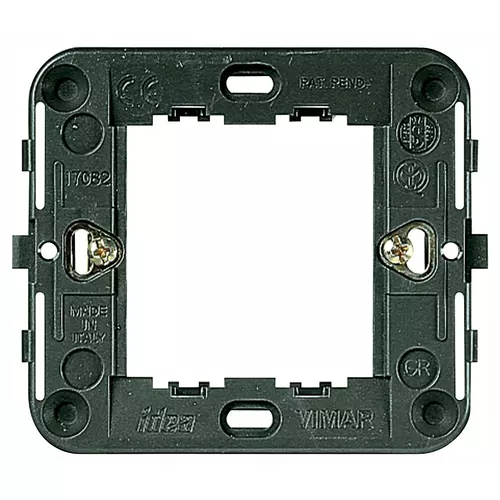

Frame 2reducedM+claws for ø60mm
2-reduced-module mounting frame, with claws, for ø 60 mm round flush or 09971 surface mounting boxes

Product Status
3 - Active

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data
• Questions and answers

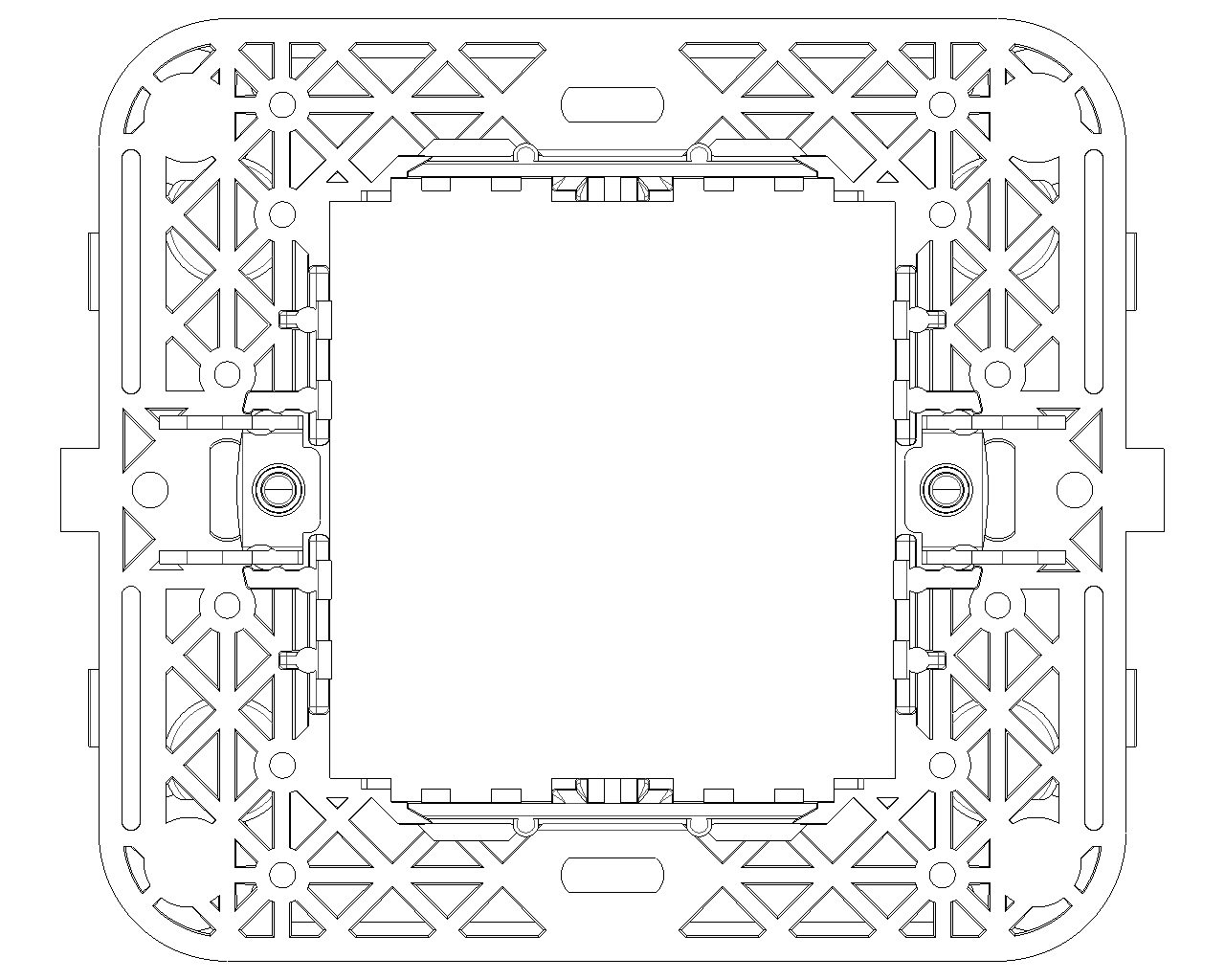

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Domestic switching devices

Class
Holder for modular domestic switching devices

Model
Flush-mounted

Mounting method
Mounting with claw

Mounting method of the module inserts
Back side

Mounting direction
Horizontal and vertical

Number of modules horizontal (module system)
2

Number of modules vertical (module system)
1

With built-in installation box
No

With screws
No

Suitable for mounting in round junction box 60 mm
Yes

Flush-mounted installation
Yes

Suitable for subfloor installation duct box
No

Suitable for wall duct
No

Suitable for mounting on DIN-rail 35 mm
No

Material
Plastic

Material quality
Thermoplastic

00. CE Marking - EU

01. IMQ - Italy

43. UKCA mark - Great Britain

96. Electrotechnical expert

Minimum order quantity: 50 NR

---

Barcode

8007352045514

1 NR

8.5x7.5x1.5 [cm]

23 [g]

8007352006218

50 NR

31x24.8x8.7 [cm]

1,324.67 [g]

Question:	Can reduced 2M mounting frames be fitted with 16A German socket outlets?
Answer:	To install a 16A German socket outlet on a reduced Idea module, there is a dedicated article: 2P+E 16A German SICURY socket outlet grey - 17038

---
