Frame 2red.M no/screws ø60/56x56mm - 17087

17087
Wiring devices / Traditional wiring devices / IDEA / Mounting frames

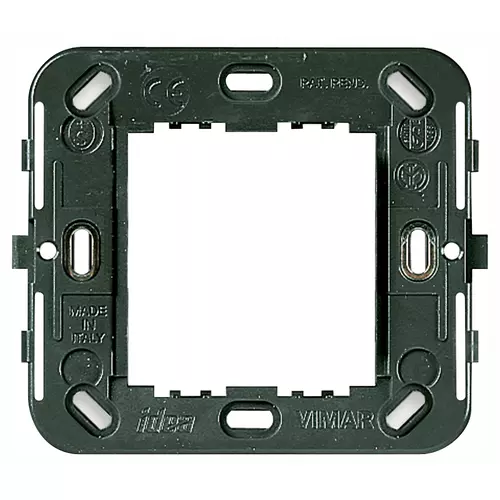

Frame 2red.M no/screws ø60/56x56mm
2-reduced-module mounting frame, without screws, for 60 mm fixing centers, 56x56 mm flush or 09971 surface mounting boxes, grey

Product Status
3 - Active

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

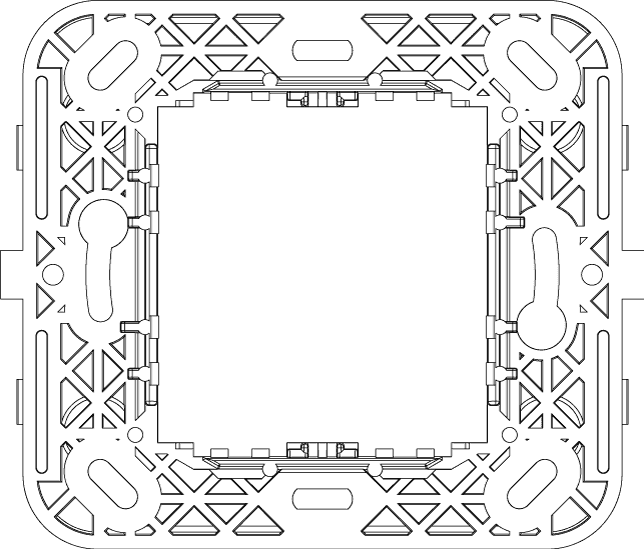

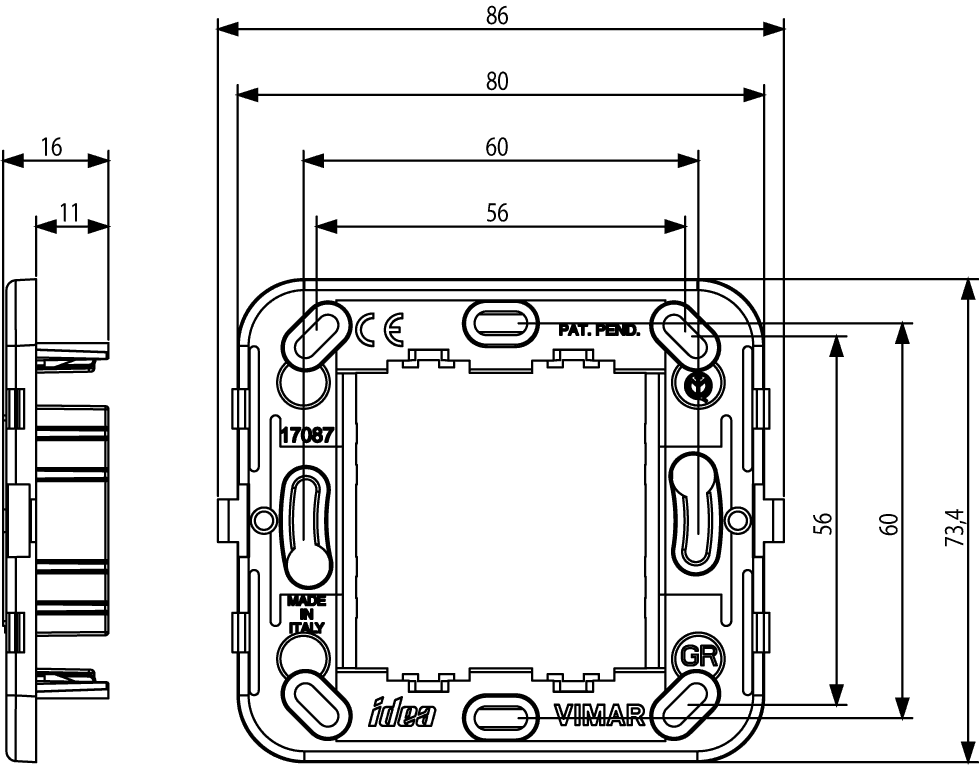

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Domestic switching devices

Class
Holder for modular domestic switching devices

Model
Flush-mounted

Mounting method
Mounting with screw

Mounting method of the module inserts
Back side

Mounting direction
Horizontal and vertical

Number of modules horizontal (module system)
2

Number of modules vertical (module system)
1

With built-in installation box
No

With screws
No

Suitable for mounting in round junction box 60 mm
No

Flush-mounted installation
Yes

Suitable for subfloor installation duct box
No

Suitable for wall duct
No

Suitable for mounting on DIN-rail 35 mm
No

Material
Plastic

Material quality
Thermoplastic

00. CE Marking - EU

01. IMQ - Italy

43. UKCA mark - Great Britain

96. Electrotechnical expert

Minimum order quantity: 50 NR

---

Barcode

8007352096653

1 NR

8.5x7.5x1.5 [cm]

16.67 [g]

8007352096660

50 NR

30.5x21.2x11.4 [cm]

997.27 [g]
