1P 10AX 2-way switch mechanism screwless - 19004.FX.0

19004.FX.0

Arké / Devices / Basic devices

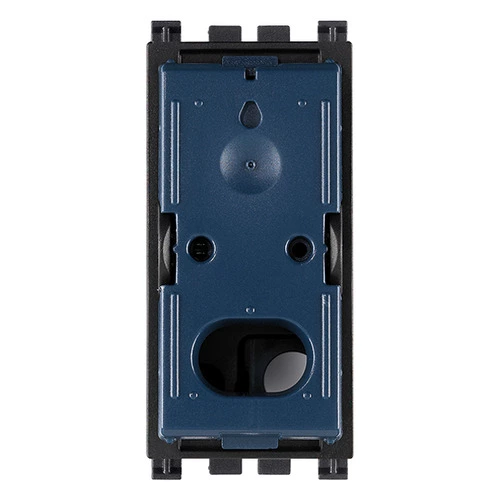

1P 10AX 2-way switch mechanism screwless
1P 10 AX 250 V~ 2-way switch mechanism, screwless terminals, lighTable, to complete with 1, 2 or 3-module button. Max 100 W for self-ballasted lamps (IEC 60669-1:2017)

Product Status
3 - Active

Class group
Domestic switching devices
Class
Switch
Wiring system
Two-way switch
Method of operation
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module syst
1
Push button switch
Yes
Number of rockers
1
Mounting method
Flush mounted (plaster)
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
Blue
RAL-number (akin)
7015
Label space/information surfac
Yes
Illumination
Optional
Function lighting
Control and orientation
Type of lighting
Not included
Suitable for degree of protect
IP40
Nominal voltage
250 v
Rated current
10 A
Switching current for fluoresc
10
Feedback-signal contact
No

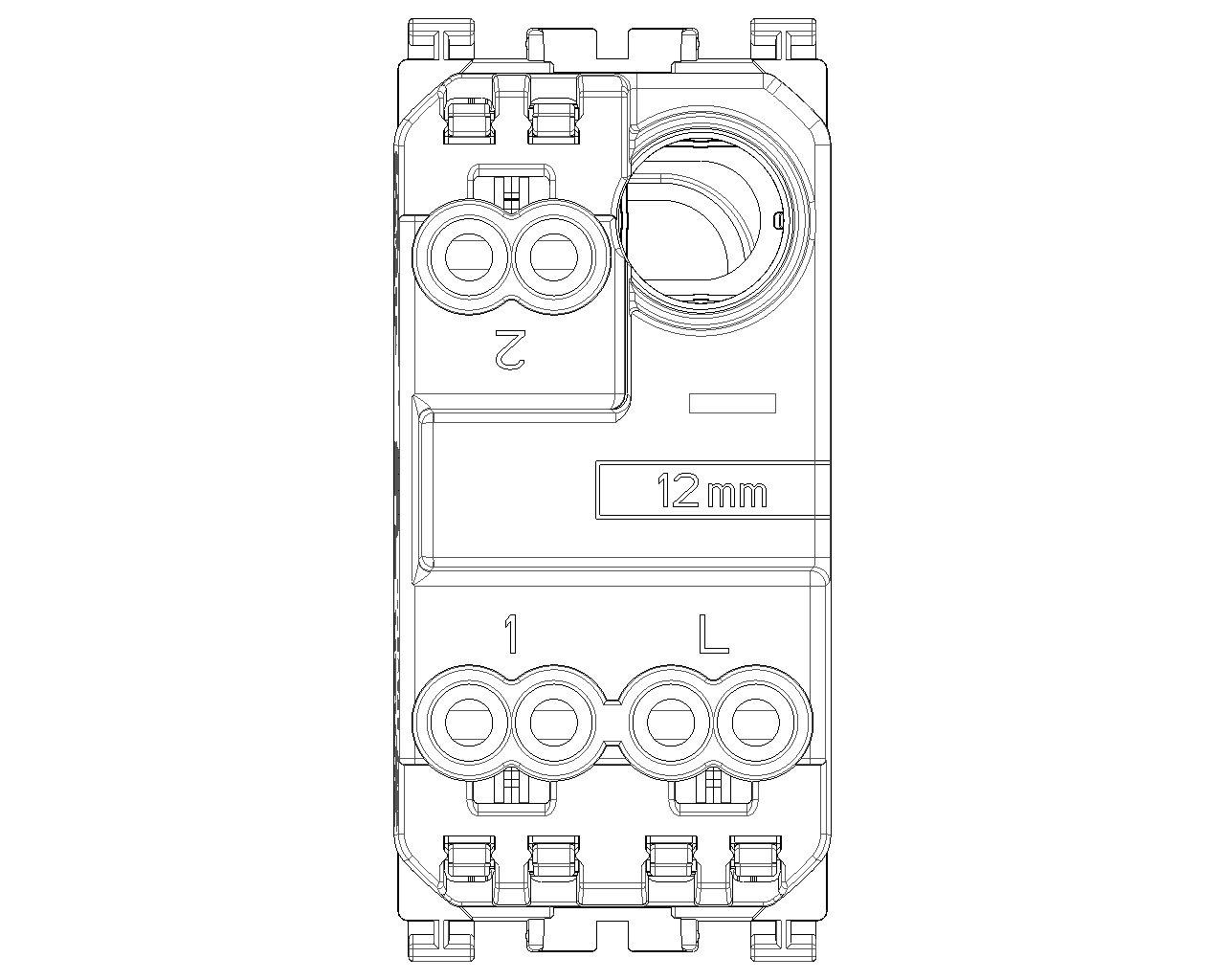

Connection type
Plug clamp
Washing machine switch
No

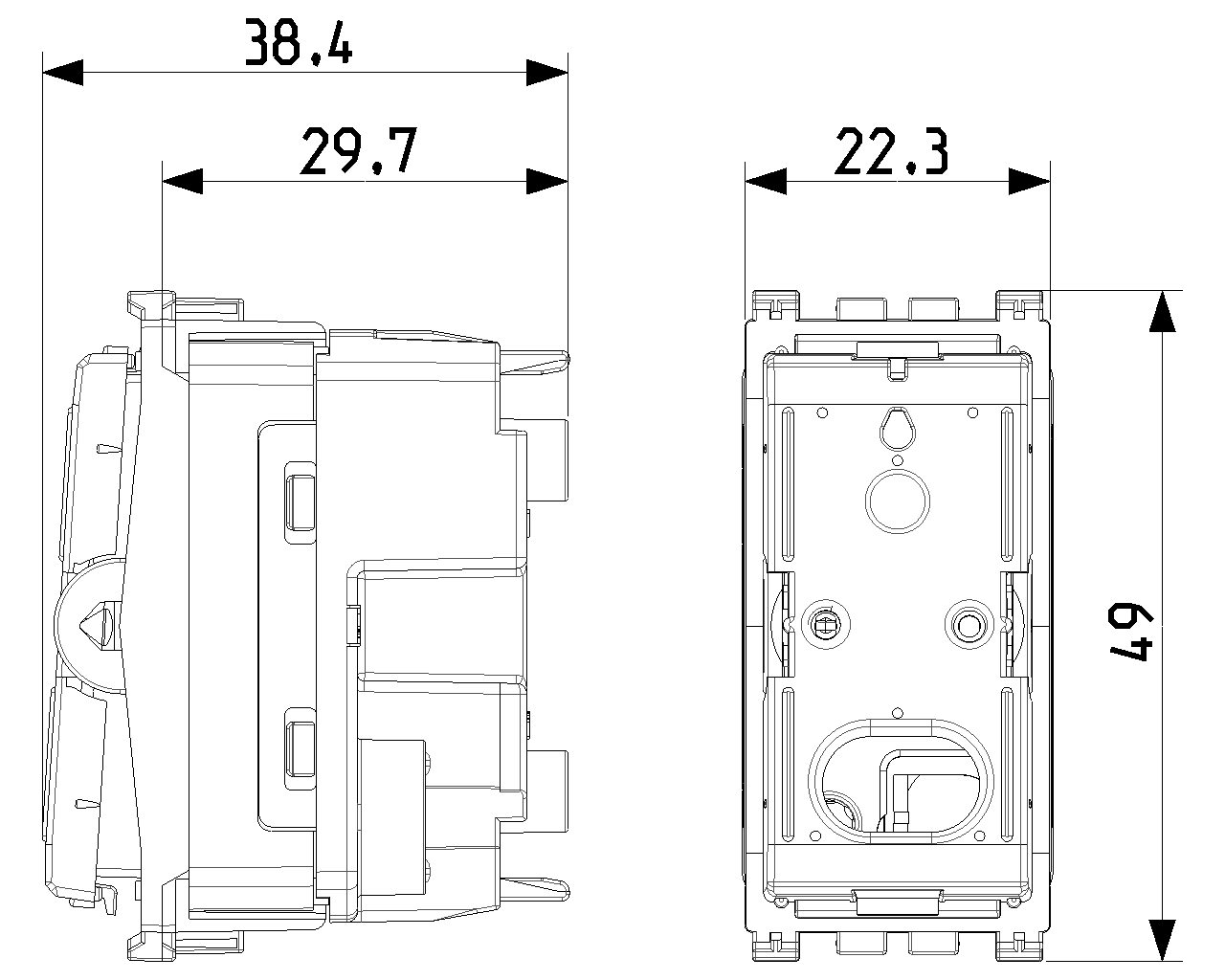

Width of device
22,30 mm
Height of device
49,00 mm
Depth of device
38,30 mm
Built-in depth
26,90 mm
Minimum order quantity: 1 NR

Barcode

8007352629813
1 NR
5.1x2.8x5.3 [cm]
23.6 [g]
8007352629820
50 NR
27x15x12 [cm]
532.1 [g]
