Vimar - 19008.0 - 1P NO 10A push button mechanism

19008.0
Wiring devices / Traditional wiring devices / ARKÉ / Devices

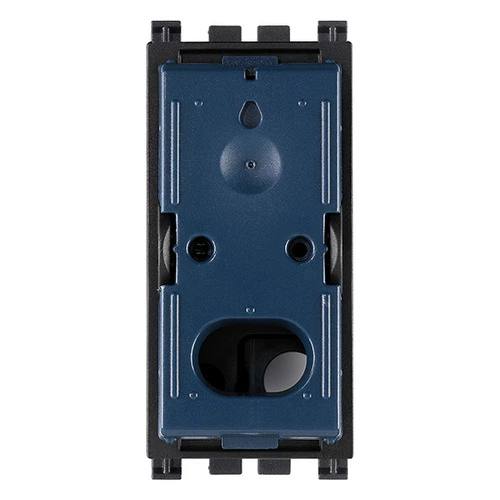

1P NO 10A push button mechanism
1P NO 10 A 250 V~ push button mechanism, lightable, to complete with 1, 2 or 3-module button

Product Status
3 - Active

Video

Arké lives in your time

Drawings

view encumbered art. 19008.0

PNG DXF

rear view art. 19008.0

PNG DXF

3D view art. 19008.0

PNG DXF

Class group
Domestic switching devices

Class
Push button

Assembly arrangement
Modular device for domestic switching devices

Model
Single push button

Method of operation
Push button

Number of rockers
1

Number of modules (module system)
100

Number of poles
1

Nominal voltage
250 V

Rated current
10,00 A

With lighting
Yes

Monitoring contact
No

Mounting method
Flush-mounted

Type of fastening
Engage (snap)

Material
Plastic

Material quality
Thermoplastic

Halogen free
Yes

Surface protection
Untreated

Surface finishing
Matt

Colour
Blue

RAL-number (similar)
7015

Transparent
No

Label space/information surface
Yes

Suitable for degree of protection (IP)
IP40

Device width
22,30 mm

Device height
49,00 mm

Device depth
34,60 mm

00. CE Marking - EU

01. IMQ - Italy

13. SNI-MGI - Indonesia

14. TSE - Turkey

15. CCC - China

19. NOM - Mexico

26. SASO - Saudi Arabia

28. NSW - Australia

29. QCERT - Colombia

36. ISI - India

37. Marking - Morocco

92. RoHS UAE

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 20 NR

Barcode

8007352413054

1 NR

4.1x2.8x5.3 [cm]

22.8 [g]

8007352413061

20 NR

21.4x11.6x6 [cm]

512.5 [g]

8007352636354

460 NR

57.5x22.5x30 [cm]

12,800 [g]
