1P 16AX reversing-switch 2M grey - 19013.2

Pdf

19013.2
Wiring devices / Traditional wiring devices / ARKÉ / Devices

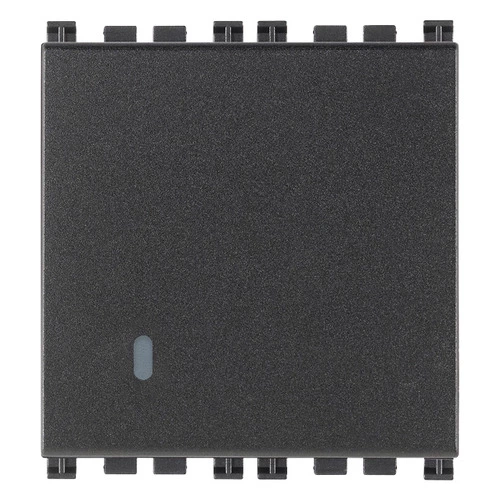

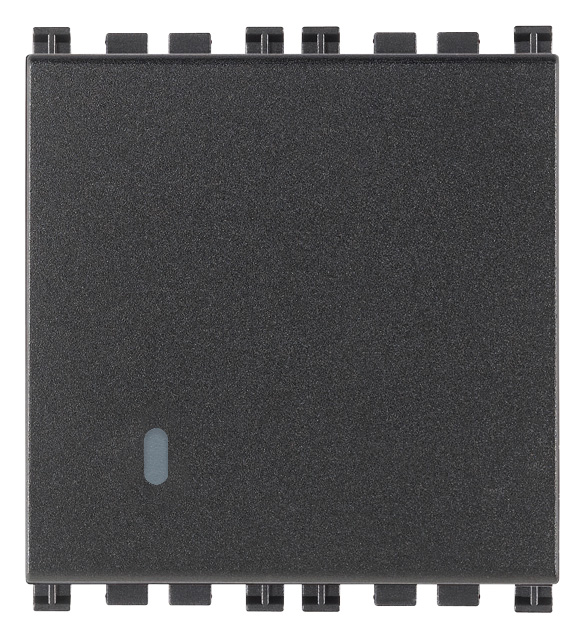

1P 16AX reversing-switch 2M grey
1P 16 AX 250 V~ reversing switch, lightable, replaceable button, grey - 2 modules. Max 200 W for self-ballasted lamps (IEC 60669-1:2017)

Product Status
3 - Active

Class group
Domestic switching devices
Class
Installation switch
Wiring system
Intermediate switch
Method of operation
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
2
Push button switch
Yes
Number of rockers
1
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7015
Label space/information surface
Yes
Illumination
Optional
Function lighting
Control and orientation
Type of lighting
LED exchangeable
Suitable for degree of protection (IP)
IP40
Nominal voltage
250 V
Rated current
16,00 A
Feedback-signal contact
No
Connection type
Screwed terminal
Washing machine switch
No
Device width
44,80 mm
Device height
49,00 mm
Device depth
36,85 mm
Built-in depth
25,00 mm

00. CE Marking - EU

13. SNI - Indonesia

14. TSE - Turkey

15. CCC - China

19. NOM - Mexico

29. QCERT - Colombia

31. TISI - Thailand

36. ISI - India

37. Marking - Morocco

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352413177
1 NR
5.1x4.3x5.3 [cm]
41.6 [g]
Barcode Qty 20 NR
8007352413184
20 NR
26.9x11.6x9 [cm]
922.2 [g]
Barcode Qty 240 NR
8007352706712
240 NR
38x28.5x35.5 [cm]
11,066.4 [g]
