1P NC 10A cord-operated push button Meta - 19053.M

Pdf
19053.M

Arké Metal / Devices / Devices - other functions

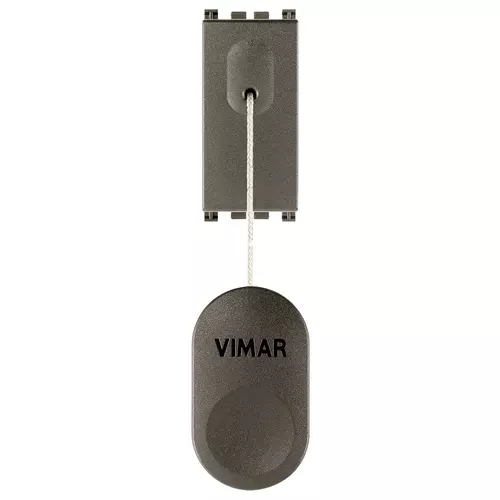

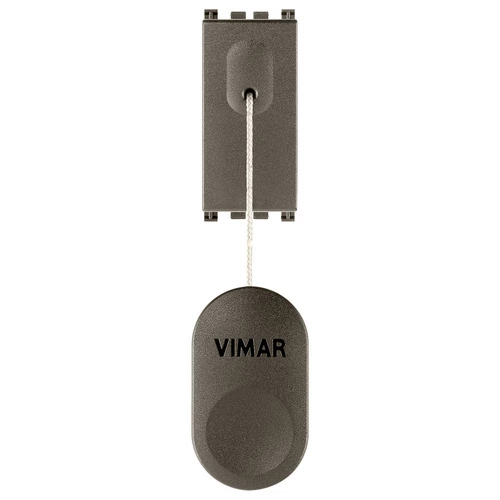

1P NC 10A cord-operated push button Meta
1P NC 10 A 250 V~ cord-operated push button, with 1,5 m cord, Metal

Product Status
3 - Active

Class group
Domestic switching devices
Class
Push-switch button
Assembly arrangement
Modular device for domestic switching devices
Model
Other
Method of operation
Push button
Contacts
1 breaker contact (NC)
Number of poles
1
Feedback-signal contact
No
Number of rockers
0
Number of modules (module system)
1
With lighting
No
Mounting method
Flush mounted (plaster)
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Matt
Colour
Aluminium
RAL-number (akin)
9007
Transparent
No
Label space/information surface
Yes
Suitable for degree of protection (IP)
IP40
Nominal voltage
250 v
Rated current
10,00 A
Width of device
22,30 mm
Height of device
49,00 mm
Depth of device
35,70 mm
Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352595828
1 NR
6x2.8x5.3 [cm]
33.2 [g]
Barcode Qty 20 NR
8007352595835
20 NR
28.1x13.1x6 [cm]
745.5 [g]
