1P NO 10A push +white indicator white - 19068.B

Pdf
19068.B

Arké white / Devices / Devices - other functions

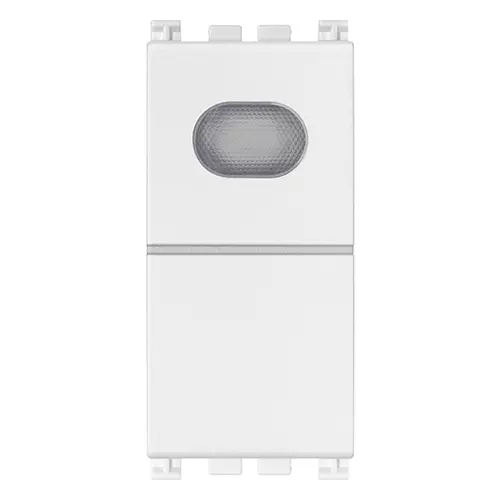

1P NO 10A push +white indicator white
1P NO 10 A 250 V~ push button + indicator unit for signalling unit, neutral diffuser, white. Provided without signalling unit

Product Status
3 - Active

Class group
Domestic switching devices
Class
Push-switch button
Assembly arrangement
Modular device for domestic switching devices
Model
Single push button
Method of operation
Push button
Number of rockers
1
Number of modules (module system)
1
Number of poles
1
Nominal voltage
250 v
Rated current
10,00 A
With lighting
Yes
Feedback-signal contact
No
Mounting method
Flush mounted (plaster)
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9016
Transparent
No
Label space/information surface
Yes
Suitable for degree of protection (IP)
IP40

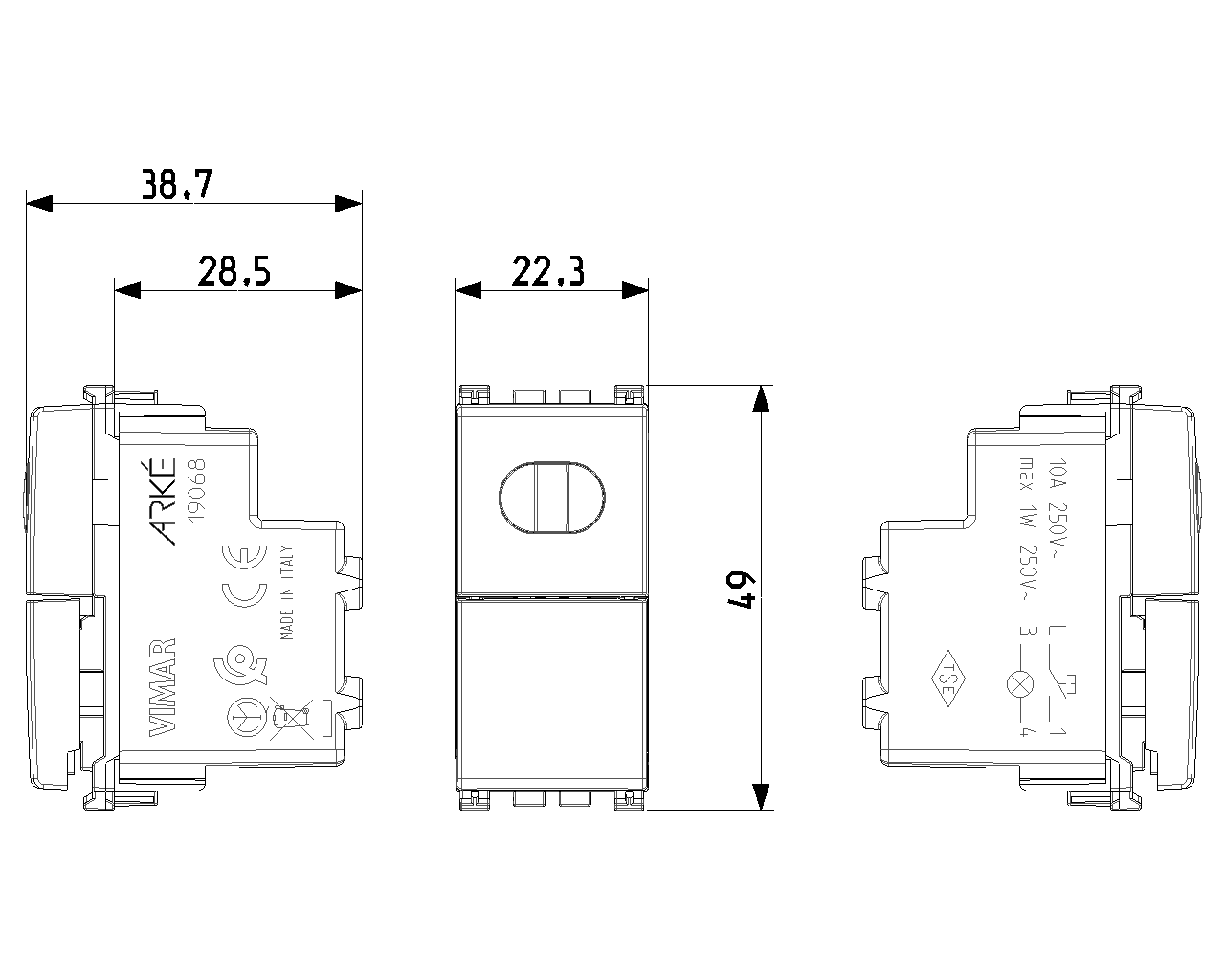

Width of device
22,30 mm
Height of device
49,00 mm
Depth of device
38,70 mm

00. CE Marking - EU

10. EAC Eurasian Customs Union

31. TISI - Thailand

36. ISI - India

37. Marking - Morocco

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352455252
1 NR
4.1x2.8x5.3 [cm]
31.1 [g]
Barcode Qty 20 NR
8007352455269
20 NR
21.4x11.6x6 [cm]
678.5 [g]
Barcode Qty 200 NR
8007352640191
200 NR
30.5x25.5x22.5 [cm]
7,140 [g]
