2P 16(3)A 1-way sw.+000-key grey - 19083.CU

Pdf

19083.CU
Wiring devices / Traditional wiring devices / ARKÉ / Devices

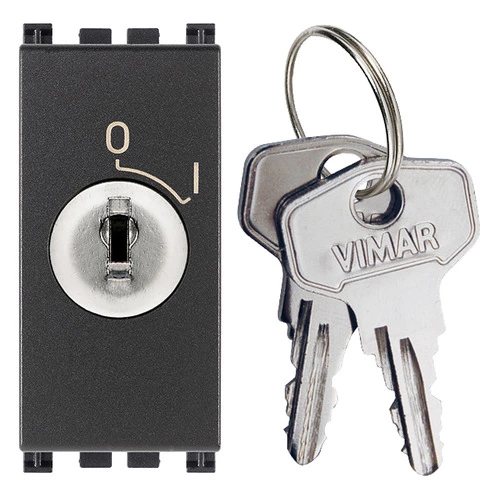

2P 16(3)A 1-way sw.+000-key grey
Independent mounting 2P 16(3) A 250 V~ key-operated 1-way switch, with 000 unified key removable in both positions, grey. To be installed with the appropriate accessories from the Arké series. Protection degree: IP20, Degree of pollution: II, Overvoltage category: III, for conductors from 1.5 mm2 to 4 mm2, complete circuit disconnection, Tracking index: PTI250, Glow wire 850°C

Product Status
3 - Active

Class group
Domestic switching devices
Class
Installation switch
Wiring system
2-pole switch
Method of operation
Key
Assembly arrangement
Other
Number of modules (module system)
1
Push button switch
Yes
Number of rockers
0
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7015
Label space/information surface
Yes
Illumination
No
Function lighting
Other
Type of lighting
Other
Suitable for degree of protection (IP)
IP40
Nominal voltage
250 V
Rated current
16,00 A
Feedback-signal contact
No
Connection type
Screwed terminal
Washing machine switch
Yes
Device width
22,30 mm
Device height
49,00 mm
Device depth
43,50 mm
Built-in depth
33,00 mm

00. CE Marking - EU

14. TSE - Turkey

29. QCERT - Colombia

37. Marking - Morocco

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352414082
1 NR
5.1x2.8x5.3 [cm]
55.2 [g]
Barcode Qty 20 NR
8007352414099
20 NR
27x11.6x6 [cm]
1,173 [g]
