2P NO 16A push button +000-key white - 19086.CU.B

Pdf
19086.CU.B

Arké white / Devices / Devices - other functions

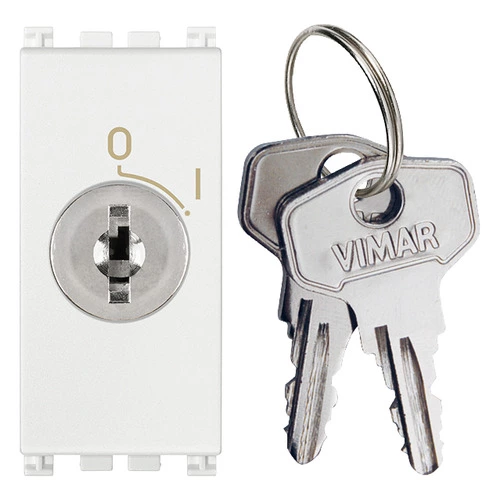

2P NO 16A push button +000-key white
2P NO 16 A 250 V~ key-operated push button, 000 unified key removable in OFF position only, white

Product Status
3 - Active

Class group
Domestic switching devices
Class
Push-switch button
Assembly arrangement
Modular device for domestic switching devices
Model
Other
Method of operation
Push button
Number of rockers
0
Number of modules (module system)
1
Number of poles
2
Nominal voltage
250 v
Rated current
16,00 A
With lighting
No
Feedback-signal contact
No
Mounting method
Flush mounted (plaster)
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9016
Transparent
No
Label space/information surface
Yes
Suitable for degree of protection (IP)
IP40
Width of device
22,30 mm
Height of device
49,00 mm
Depth of device
43,50 mm

00. CE Marking - EU

10. EAC Eurasian Customs Union

37. Marking - Morocco

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352455375
1 NR
5.1x2.8x5.3 [cm]
56.9 [g]
Barcode Qty 20 NR
8007352455382
20 NR
27x11.6x6 [cm]
1,206 [g]
