2P+E 15A 127V USA outlet white - 19245.B

Pdf

19245.B
Wiring devices / Traditional wiring devices / ARKÉ / Devices

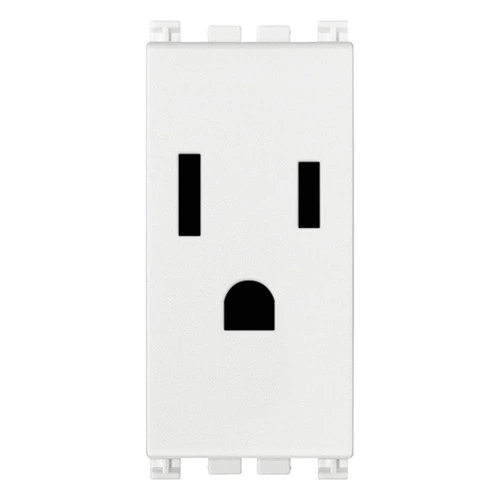

2P+E 15A 127V USA outlet white
2P+E 15 A 127 V~ socket outlet, American and Saudi Arabian standards, white

Product Status
3 - Active

Class group
Domestic switching devices
Class
Socket outlet
Number of units
1
Number of modules (module system)
1
Number of socket outlets switchable
0
Imprint/indication
None
Connection type
Screwed terminal
With hinged lid
No
With enhanced contact protection
No
Label space/information surface
Yes
Colour
White
RAL-number (similar)
9016
Metallic colour
No
Transparent
No
Lockable
No
Eject-mechanism
No
Insulated mounting
No
With function lighting
No
With orientation lighting
No
Over voltage protection
No
Fault current protection
No
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
With loop through function
No
With on/off switch
No
Rotated central insert
No
Nominal current
15 A
Nominal voltage
127 V
Frequency
50,00 - 60,00 HZ
Suitable for degree of protection (IP)
IP20
Impact strength
Other
Device width
22,30 mm
Device height
49,00 mm
Device depth
37,10 mm

00. CE Marking - EU

37. Marking - Morocco

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352471184
1 NR
4.1x2.8x5.3 [cm]
28.7 [g]
Barcode Qty 20 NR
8007352471191
20 NR
21.4x11.6x6 [cm]
631.9 [g]
