2P+E 15A Australian SICURY outlet Metal - 19262.M

Pdf

19262.M
Wiring devices / Traditional wiring devices / ARKÉ / Devices

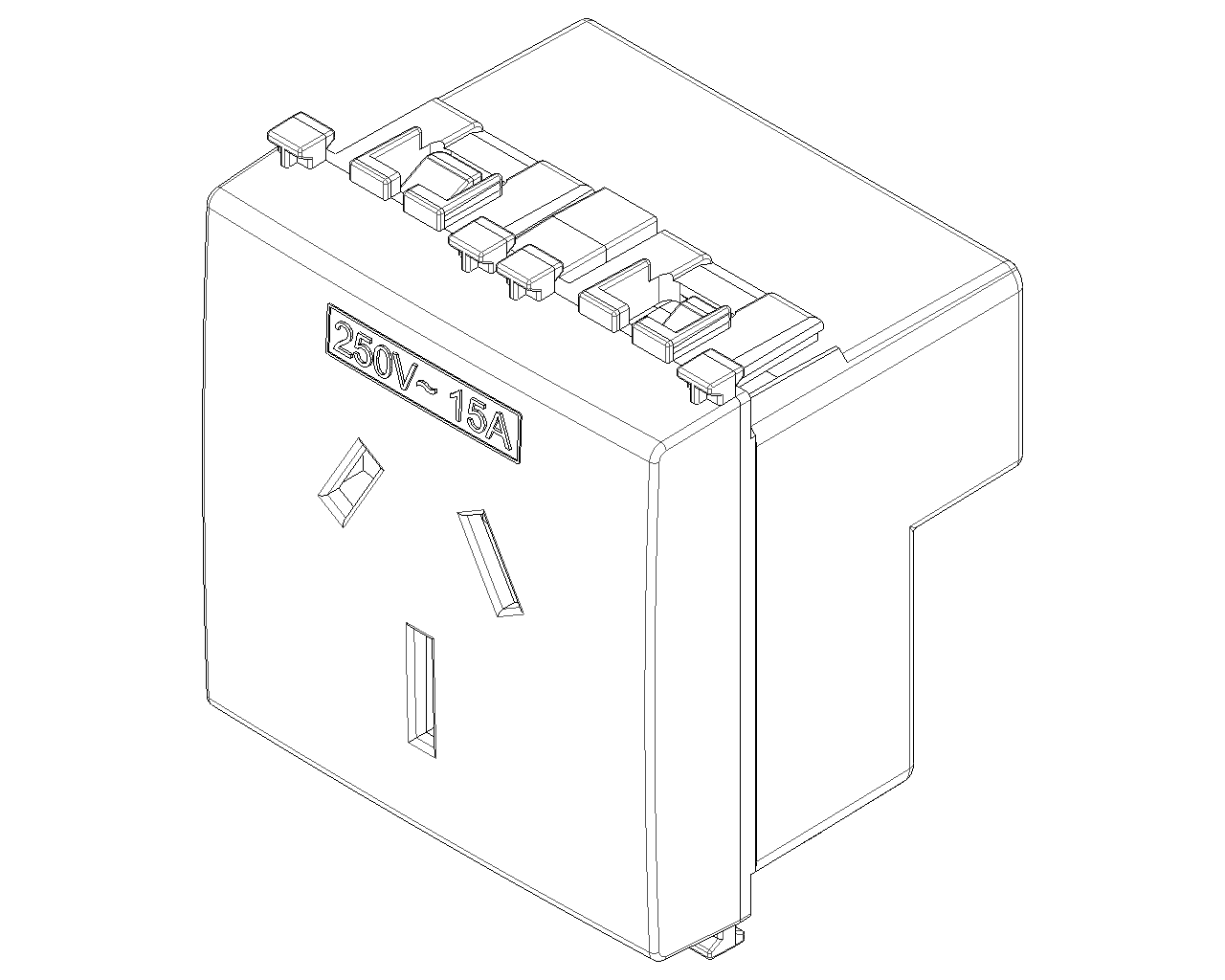

2P+E 15A Australian SICURY outlet Metal
2P+E 15 A 250 V~ SICURY socket outlet, Australian standard, Metal - 2 modules

Product Status
3 - Active

Class group
Domestic switching devices
Class
Socket outlet
Model
Other
Number of units
1
Number of modules (module system)
2
Number of socket outlets switchable
0
Imprint/indication
None
Connection type
Screwed terminal
With hinged lid
No
With enhanced contact protection
Yes
Label space/information surface
Yes
Colour
Aluminium
RAL-number (similar)
9007
Metallic colour
No
Transparent
No
Lockable
No
Eject-mechanism
No
Insulated mounting
No
With function lighting
No
With orientation lighting
No
Over voltage protection
No
Fault current protection
No
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Matt
With loop through function
No
With on/off switch
No
Rotated central insert
No
Nominal current
15 A
Nominal voltage
250 V
Frequency
50,00 - 60,00 HZ
Suitable for degree of protection (IP)
IP20
Impact strength
Other

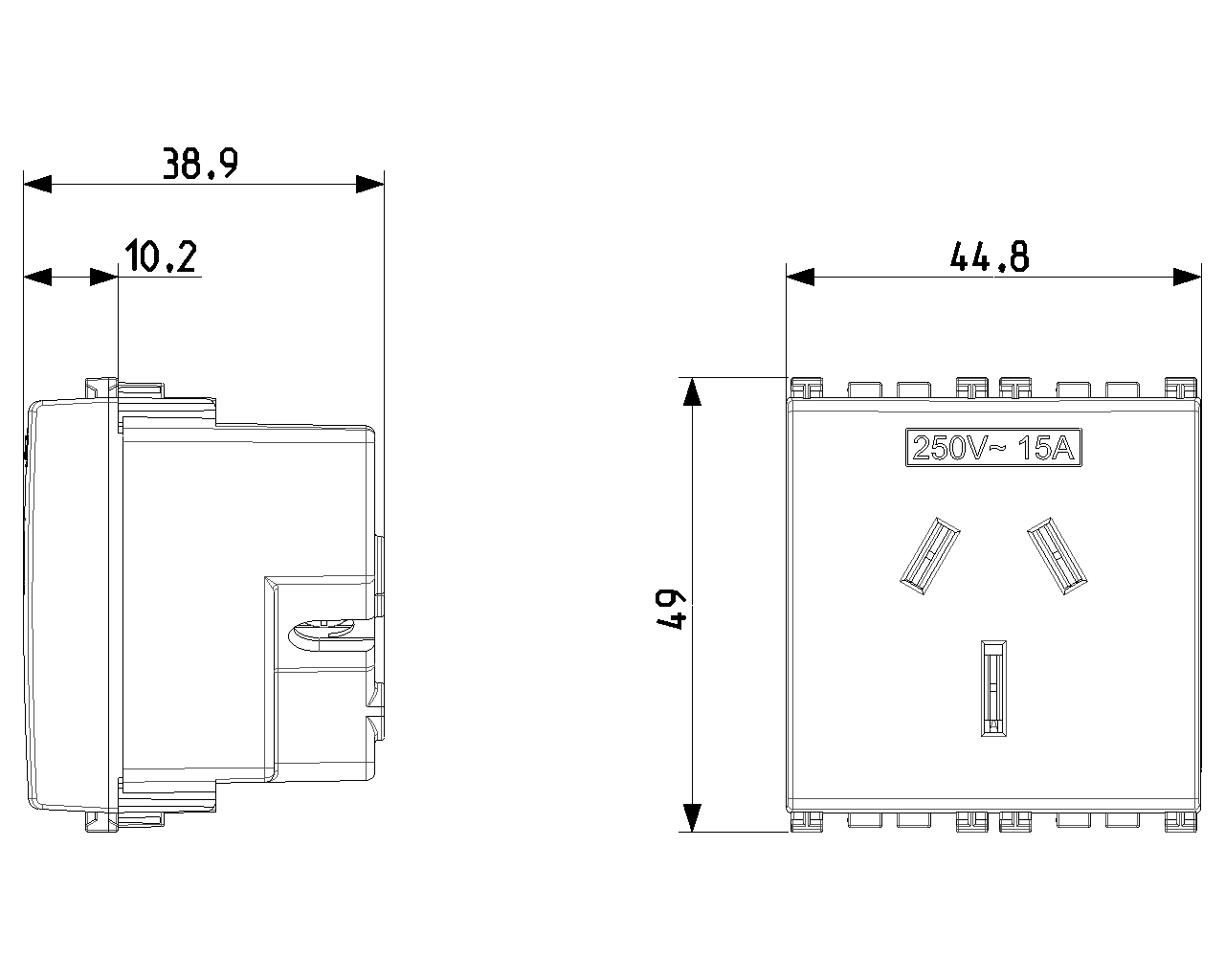

Device width
44,70 mm
Device height
49,00 mm
Device depth
38,90 mm

00. CE Marking - EU

28. NSW - Australia

37. Marking - Morocco

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352596986
1 NR
5.1x4.3x5.3 [cm]
44.8 [g]
Barcode Qty 20 NR
8007352596993
20 NR
26.9x11.6x9 [cm]
978.8 [g]
