TV-FM-SAT single conn. 3outs Metal - 19303.M

Pdf
19303.M

Arké Metal / Devices / 3-output TV-RD-SAT socket outlets

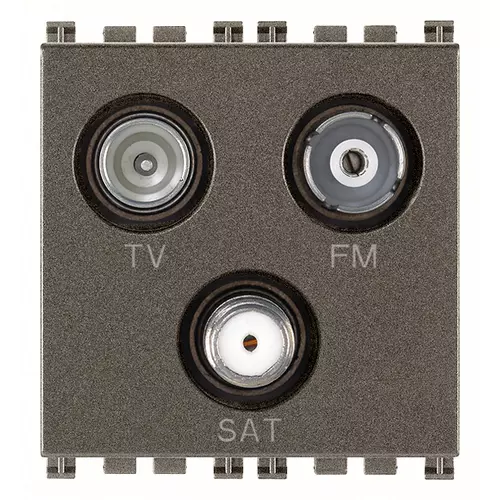

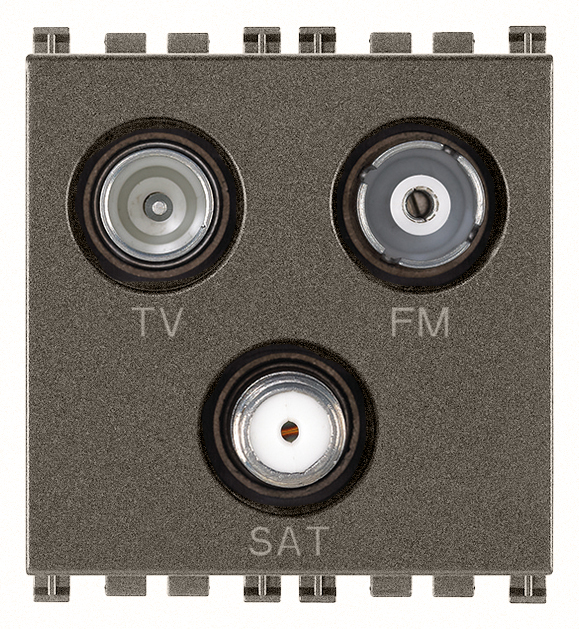

TV-FM-SAT single conn. 3outs Metal
Coaxial TV-FM radio-SAT 5-2400 MHz socket outlet, single connection, demix, 3 outputs with TV male and female FM radio and F-type (SAT) connectors, connection attenuation 1 dB, Metal - 2 modules. Allows the passage of d.c. current and control signals (24 V 500 mA max) through the female connector

Product Status
3 - Active

Class group
Antenna and satellite technique
Class
Antenna socket box
Model
End socket
Cover
None
Tap loss at 860 MHz
1,80 dB
Tap loss at 2150 MHz
1,30 dB
Number of outlets
3
Suitable for remote power supply
Yes
Frequency
5 - 2400 MHz
Type of fastening
Snap mounting (engagement)
Colour
Aluminium
RAL-number (similar)
9007
Material
Plastic

00. CE Marking - EU

00. CE Marking - EU

10. EAC Eurasian Customs Union

37. Marking - Morocco

Minimum order quantity: 5 NR

Barcode

Barcode Qty 1 NR
8007352600669
1 NR
5.1x4.3x5.3 [cm]
82.4 [g]
Barcode Qty 5 NR
8007352602472
5 NR
14.4x11.6x6 [cm]
460.9 [g]

Didn't find the answer you were looking for?

Ask a question

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
