Israeli phone jack white - 19324.B

Pdf

19324.B
Wiring devices / Traditional wiring devices / ARKÉ / Devices

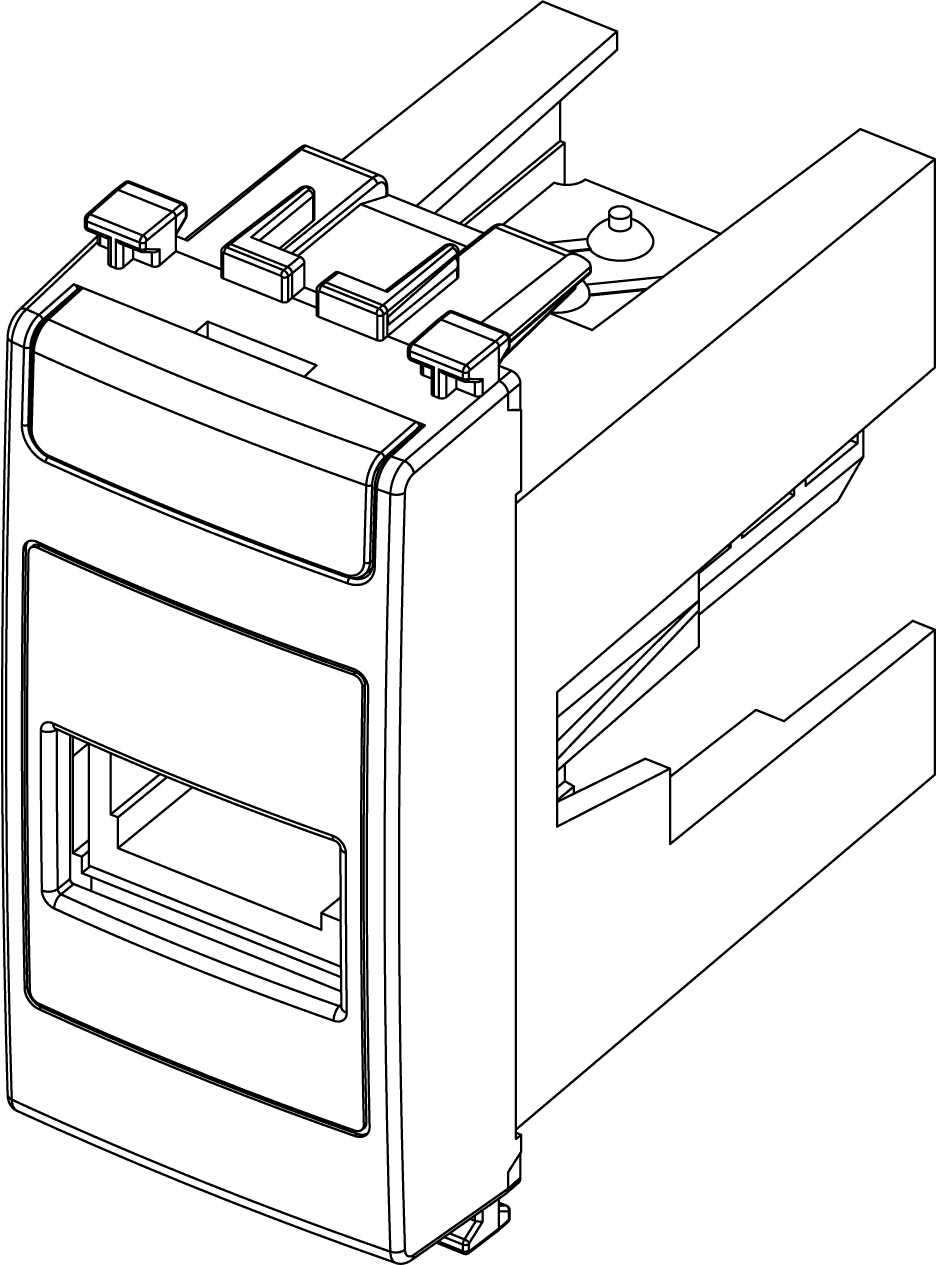

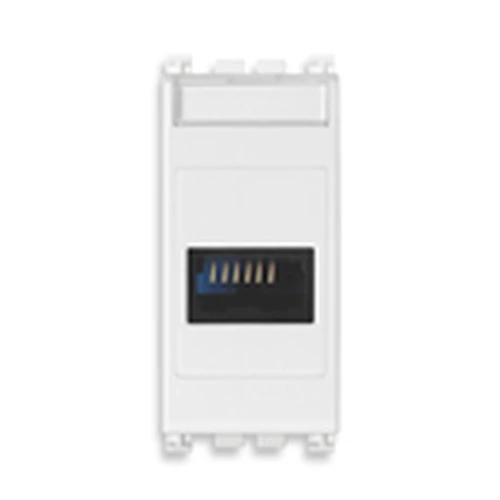

Israeli phone jack white
Phone jack, Israeli standard, screw terminals, white

Product Status
3 - Active

Class group
Domestic switching devices
Class
Insert/cover for communication technology
Assembly arrangement
Modular device for domestic switching devices
Utilization
Other
Support ring
No
With dust cover
No
With hinged lid
No
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9016
Transparent
No
Number of modules (module system)
1
With strain relief
No
Luster terminal
No
Suitable for degree of protection (IP)
IP20
Device width
22,30 mm
Device height
49,00 mm
Device depth
42,90 mm

00. CE Marking - EU

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352471405
1 NR
5.1x2.8x5.3 [cm]
23.1 [g]
Barcode Qty 10 NR
8007352471412
10 NR
14.4x11.6x6 [cm]
275.1 [g]
Barcode Qty 120 NR
8007352713185
120 NR
37.5x30x13.5 [cm]
3,301.2 [g]
