System infrastructure / Netsafe structured wiring / ARKÉ / Devices

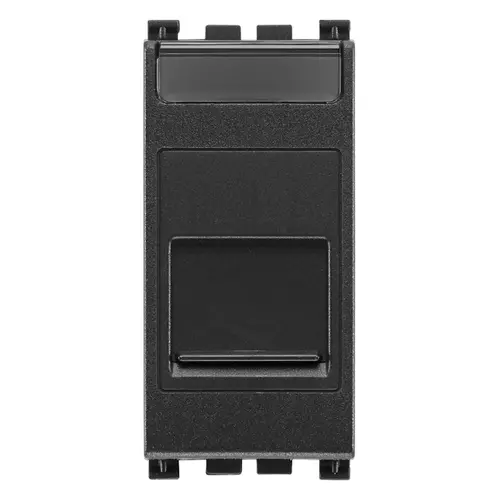

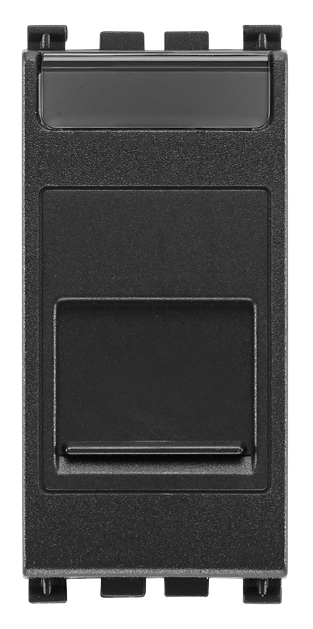

RJ45 Cat6 UTP outlet+cover grey
RJ45 outlet with dust cover, Cat. 6, unshielded, T568A/B universal wiring, 8 contacts, insulation-piercing terminals, grey
Product Status
3 - Active
Sheets, Manuals, Documentation
Video
Drawings
Class group
Installation material for data and telecommunication networks
Installation material for data and telecommunication networks
Class
Modular connector
Modular connector
Model
Bus (jack)
Bus (jack)
Type of connector
RJ45 8(8)
RJ45 8(8)
Screened
No
No
Category
6
6
Connection type
Crimp
Crimp
Special tool necessary
Yes
Yes
Suitable for round cable
Yes
Yes
Suitable for flat cable
Yes
Yes
Colour
Other
Other
Minimum order quantity: 20 NR
Barcode
8007352589469
1 NR
5.1x2.8x5.3 [cm]
21.2 [g]
8007352589476
20 NR
27x11.6x6 [cm]
501 [g]
