1P+N C6 RCBO 120-230V 10mA white - 19411.06.B

19411.06.B

Arké white / Devices / Residual current breakers (RCBOs)

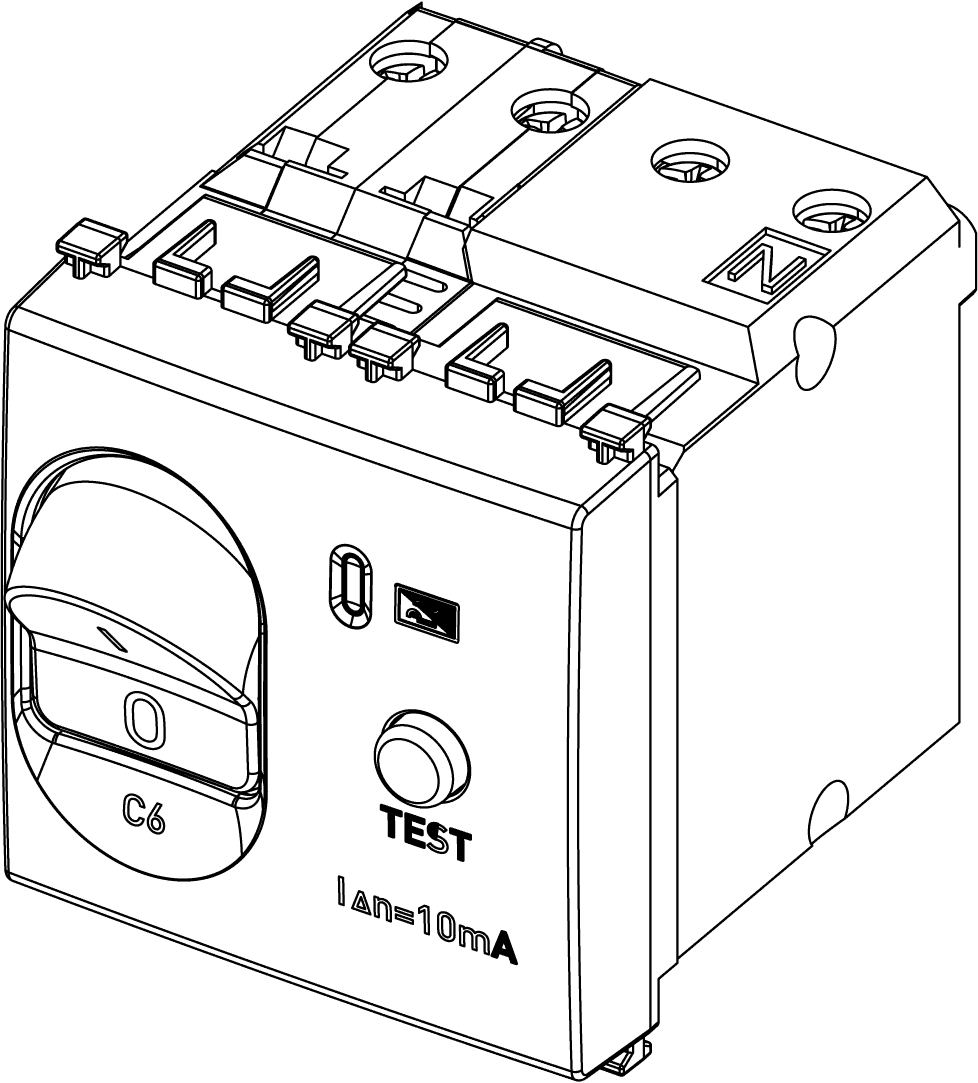

1P+N C6 RCBO 120-230V 10mA white
1P+N C 6 residual current breaker with overcurrent protection, supply voltage 120-230 V~ 50-60 Hz, IΔn 10 mA, breaking capacity 1500 A, white - 2 modules

Product Status
3 - Active

Class group
Circuit breakers and fuses
Class
Earth leakage circuit breaker
Number of poles (total)
2
Number of protected poles
1
Rated voltage
230 v
Rated current
6 A
Rated fault current
6 A
Leakage current type
A
Current limiting class
1
Rated short-circuit breaking c
1,50 kA
Surge current capacity
1,50 kA
Voltage type
AC
Frequency
50/60 Hz
Release characteristic
C
Concurrently switching N-neutr
Yes
Over voltage category
3
Built-in depth
38,00 mm
Suitable for flush-mounted ins
Yes
Anti-nuisance tripping version
No
Degree of protection (IP)
IP40
Minimum order quantity: 5 NR

Barcode

8007352456419
1 NR
6x5.4x5.3 [cm]
97.5 [g]
8007352456426
5 NR
17.2x13x6 [cm]
547.1 [g]
