1P 10AX 1-way switch screwless white - 20000.FX.B

Pdf
20000.FX.B

Eikon white / Devices / Basic devices

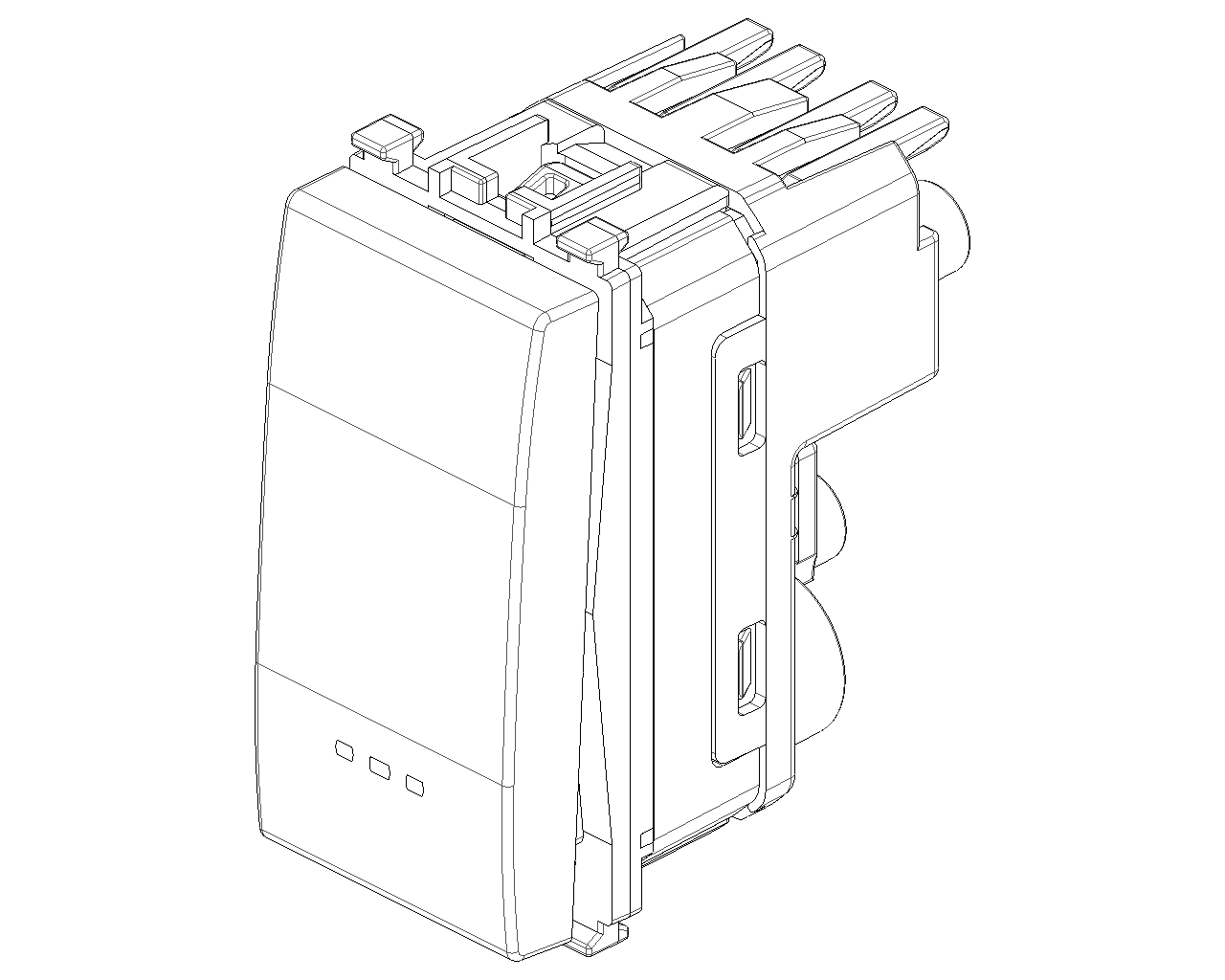

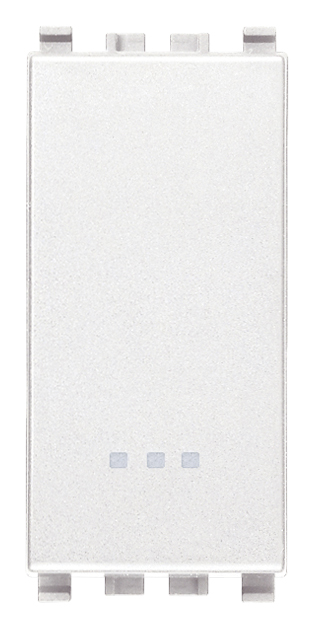

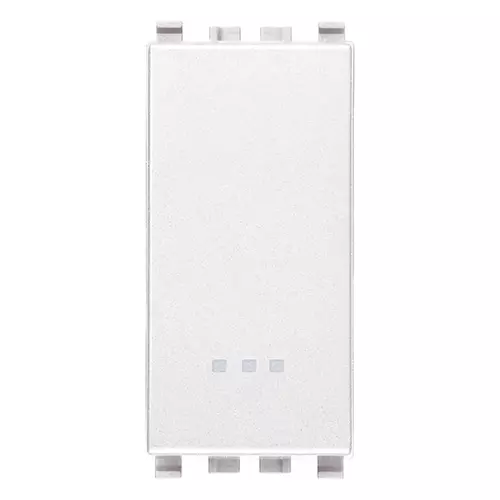

1P 10AX 1-way switch screwless white
1P 10 AX 250 V~ 1-way switch, screwless terminals, screwless terminals, lighTable, replaceable button, white. Max 100 W for self-ballasted lamps (IEC 60669-1:2017)

Product Status
3 - Active

Class group
Domestic switching devices
Class
Installation switch
Wiring system
Off switch 1-pole
Method of operation
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
1
Push button switch
Yes
Number of rockers
1
Mounting method
Flush mounted (plaster)
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9016
Label space/information surface
Yes
Illumination
Optional
Function lighting
Control and orientation
Type of lighting
LED exchangeable
Suitable for degree of protection (IP)
IP40
Nominal voltage
250 v
Rated current
10 A
Switching current for fluorescent lamps
10
Feedback-signal contact
No
Connection type
Push-in clamp
Washing machine switch
No
Width of device
22,30 mm
Height of device
49,00 mm
Depth of device
38,30 mm
Built-in depth
26,90 mm
Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352630161
1 NR
5.1x2.8x5.3 [cm]
25.7 [g]
Barcode Qty 50 NR
8007352630178
50 NR
27x15x12 [cm]
1,373 [g]
