1P NO 10A push button bell symb.2M white - 20008.2.C.B

Pdf
20008.2.C.B

Eikon white / Devices / Basic devices

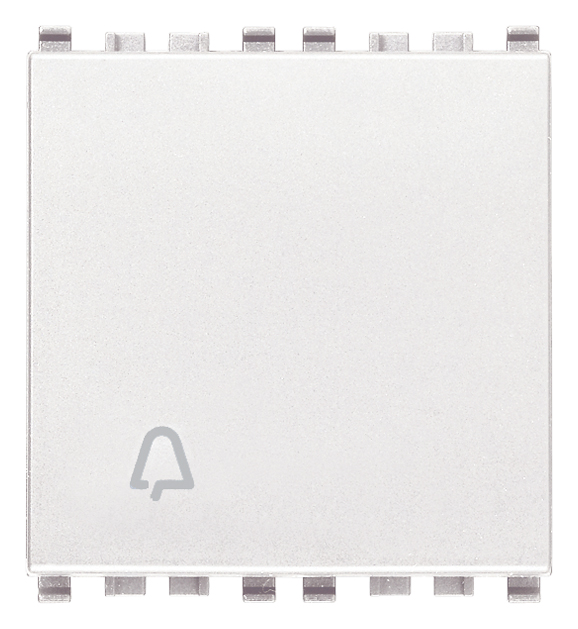

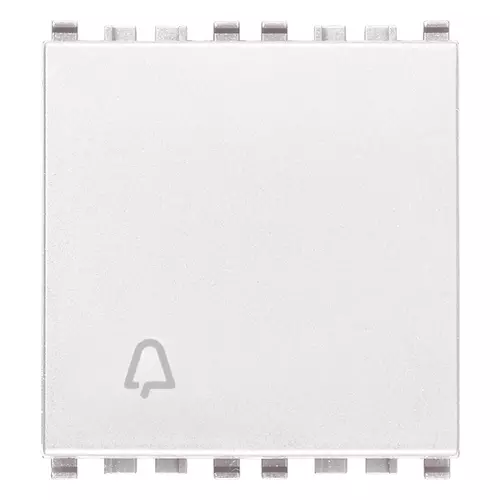

1P NO 10A push button bell symb.2M white
1P NO 10 A 250 V~ push button, lightable bell symbol, replaceable button, white - 2 modules

Product Status
3 - Active

Class group
Domestic switching devices
Class
Push-switch button
Assembly arrangement
Modular device for domestic switching devices
Model
Single push button
Method of operation
Push button
Number of rockers
1
Number of modules (module system)
2
Number of poles
1
Nominal voltage
250 v
Rated current
10,00 A
With lighting
Yes
Feedback-signal contact
No
Mounting method
Flush mounted (plaster)
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9016
Transparent
No
Label space/information surface
Yes
Suitable for degree of protection (IP)
IP40
Width of device
44,80 mm
Height of device
49,00 mm
Depth of device
36,10 mm

00. CE Marking - EU

10. EAC Eurasian Customs Union

19. NOM - Mexico

31. TISI - Thailand

36. ISI - India

37. Marking - Morocco

92. RoHS UAE

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352316409
1 NR
5.1x4.3x5.3 [cm]
34.33 [g]
Barcode Qty 20 NR
8007352316416
20 NR
26.9x11.6x9 [cm]
766.5 [g]
