20008.FX.2
Wiring devices / Traditional wiring devices / EIKON / Devices

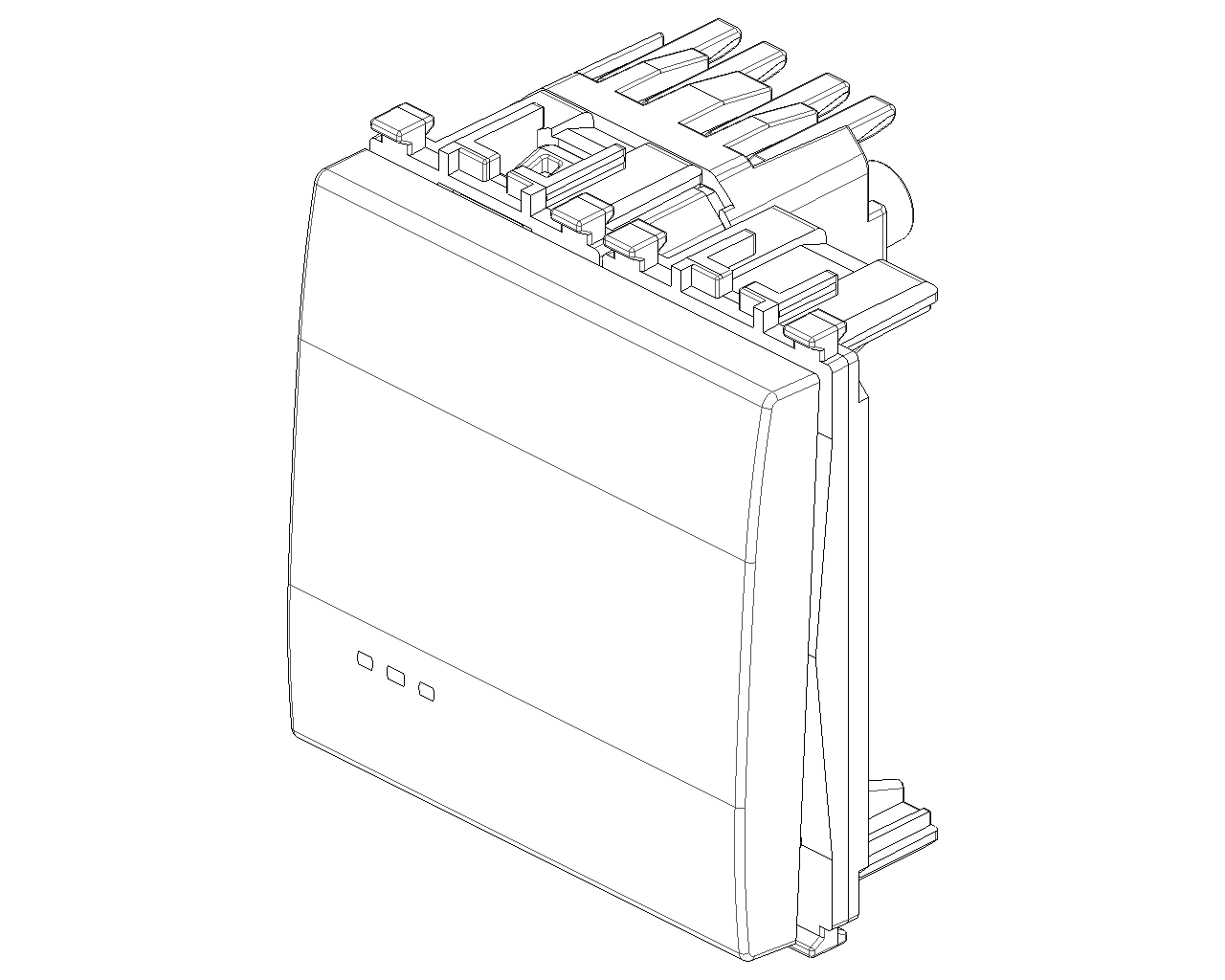

1P NO 10A 2M push button screwless gris
1P NO 10 A 250 V~ push button, screwless terminals, lightable, replaceable button, grey - 2 modules
Product Status
3 - Active
Class group
Domestic switching devices
Domestic switching devices
Class
Push button
Push button
Assembly arrangement
Modular device for domestic switching devices
Modular device for domestic switching devices
Model
Single push button
Single push button
Method of operation
Push button
Push button
Number of rockers
1
1
Number of modules (module system)
200
200
Number of poles
1
1
Nominal voltage
250 V
250 V
Rated current
10,00 A
10,00 A
With lighting
Yes
Yes
Monitoring contact
No
No
Mounting method
Flush-mounted
Flush-mounted
Type of fastening
Engage (snap)
Engage (snap)
Material
Plastic
Plastic
Material quality
Thermoplastic
Thermoplastic
Halogen free
Yes
Yes
Surface protection
Untreated
Untreated
Surface finishing
Matt
Matt
Colour
Grey
Grey
RAL-number (similar)
7024
7024
Transparent
No
No
Label space/information surface
Yes
Yes
Suitable for degree of protection (IP)
IP40
IP40

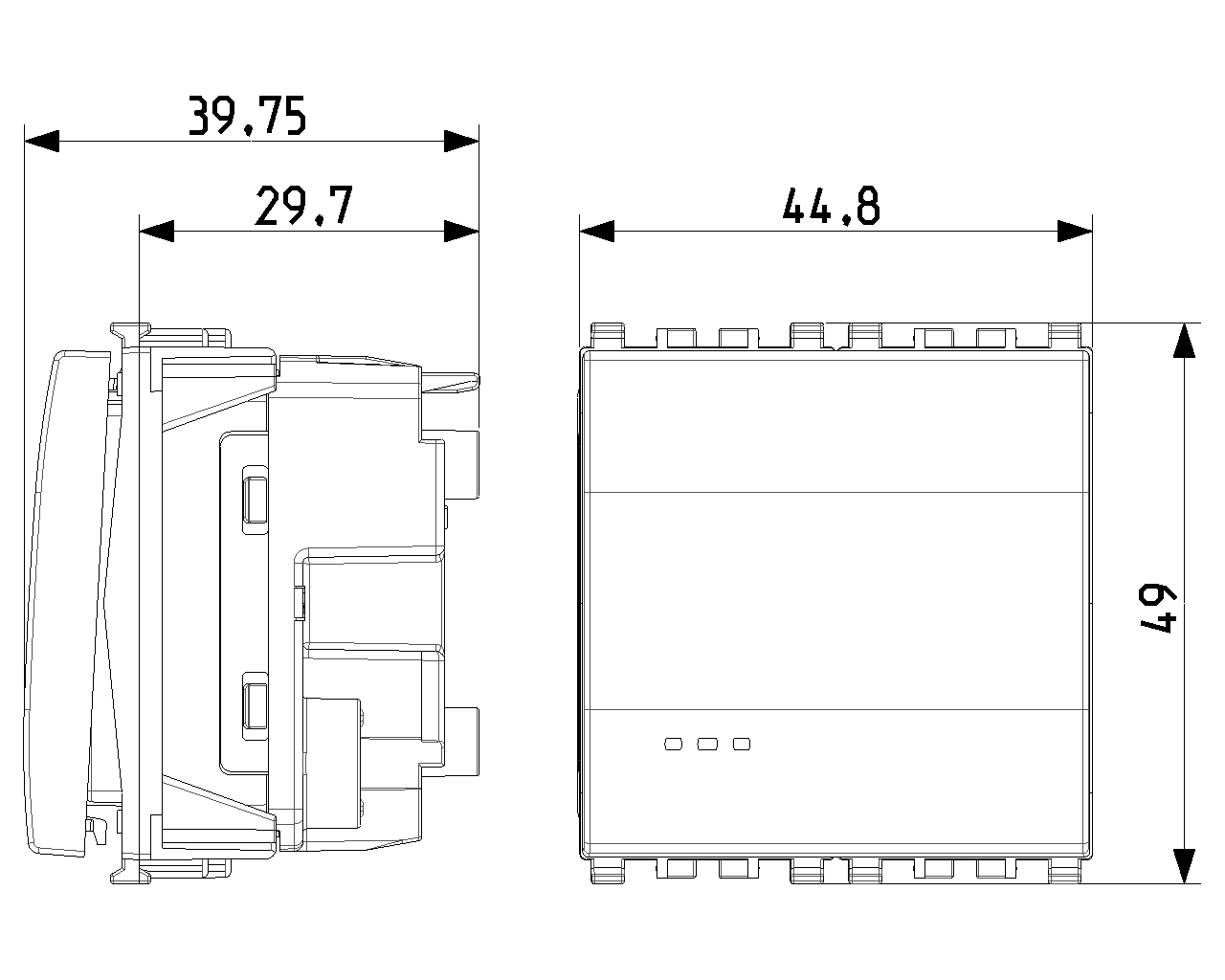

Device width
44,80 mm
44,80 mm
Device height
49,00 mm
49,00 mm
Device depth
37,90 mm
37,90 mm
00. CE Marking - EU
31. TISI - Thailand
37. Marking - Morocco
Minimum order quantity: 20 NR
Barcode
8007352515819
1 NR
5.1x4.3x5.3 [cm]
33.6 [g]
8007352515826
20 NR
26.9x11.6x9 [cm]
748.8 [g]
