2P20AX 1-way switch WATER/HEATER 2M Next - 20016.2.WH.N

Pdf

20016.2.WH.N
Wiring devices / Traditional wiring devices / EIKON / Devices

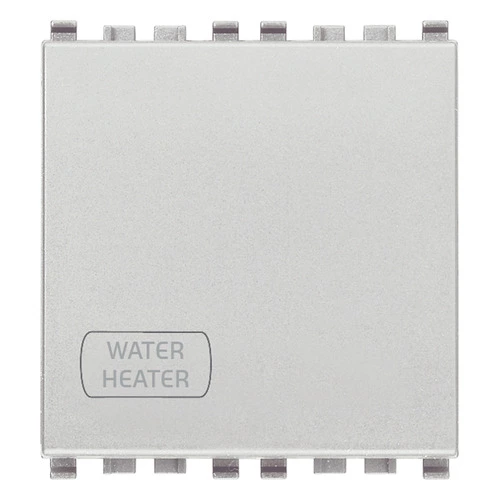

2P20AX 1-way switch WATER/HEATER 2M Next
2P 20 AX 250 V~ 1-way switch, lightable, replaceable button, WATER/HEATER symbol, Next - 2 modules. Max 250 W for self-ballasted lamps (IEC 60669-1:2017)

Product Status
3 - Active

Drawings

Class group
Domestic switching devices
Class
Installation switch
Wiring system
2-pole switch
Method of operation
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
2
Push button switch
Yes
Number of rockers
1
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Matt
Colour
Silver
RAL-number (similar)
9022
Label space/information surface
Yes
Illumination
Optional
Function lighting
Control and orientation
Type of lighting
LED exchangeable
Suitable for degree of protection (IP)
IP40
Nominal voltage
250 V
Rated current
20,00 A
Feedback-signal contact
No
Connection type
Screwed terminal
Washing machine switch
Yes
Device width
44,80 mm
Device height
49,00 mm
Device depth
36,10 mm
Built-in depth
25,00 mm

00. CE Marking - EU

10. EAC Eurasian Customs Union

31. TISI - Thailand

36. ISI - India

37. Marking - Morocco

43. UKCA mark - Great Britain

92. RoHS UAE

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352405080
1 NR
5.1x4.3x5.3 [cm]
41.3 [g]
Barcode Qty 20 NR
8007352405097
20 NR
26.9x11.6x9 [cm]
906.4 [g]
